Powder Coating Thickness Gauge
Introduction:

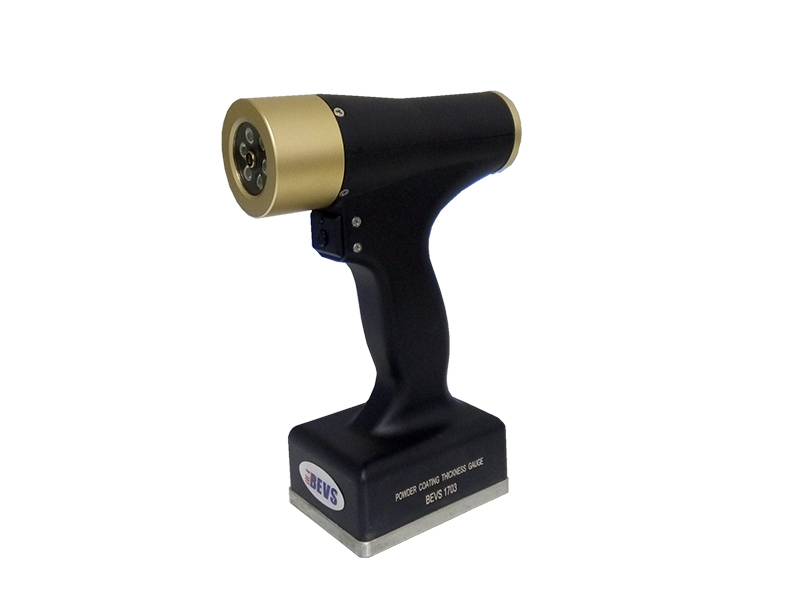

BEVS 1703 Powder Coating Thickness Gauge is a non-contact, non-destructive and rapid measuring portable instrument for the thickness of powder coatings in pre-cured and cured status. It adopts the new technology in the field of photothermic measurement.
The measurement data can be sent to the mobile phone, pad, computer, spraying control system and other terminals in real time. It is easy to achieve rapid measurement in assembly line and it can be widely used in laboratory and workshop for the real-time detection and control.
Flexible operation: the sample or gauge can be moveable during measurement.
Technical Specification:
| Measuring Range | 0 - 350μm |
| Accuracy | ±3% |
| Resolution | ±1% |
| Measuring Distance | Approx. 30mm |
| Measuring Spot | 1.5 x 1.5mm |
| Measuring Speed | 512 - 2048m/s |
| Port | Mini USB, WIFI |
| Battery Type | 3.7V(2500mAh),Rechargeable lithium battery |
| Substrates | Metal |
Features:
◆ Data wireless encryption transmission in real time
◆ Automatic measurement
◆ Measurable for irregular sample
◆ Measurable for wet and dry film thickness
◆ Data enables to save and output
◆ Statistics: measure times, graph, max. and min. value
◆ APP software interface: Real time displaying the testing curve and result.
Standard:
DIN EN 15042-2
Order Information:
BEVS 1703 Powder Coating Thickness Gauge (Discontinued)
