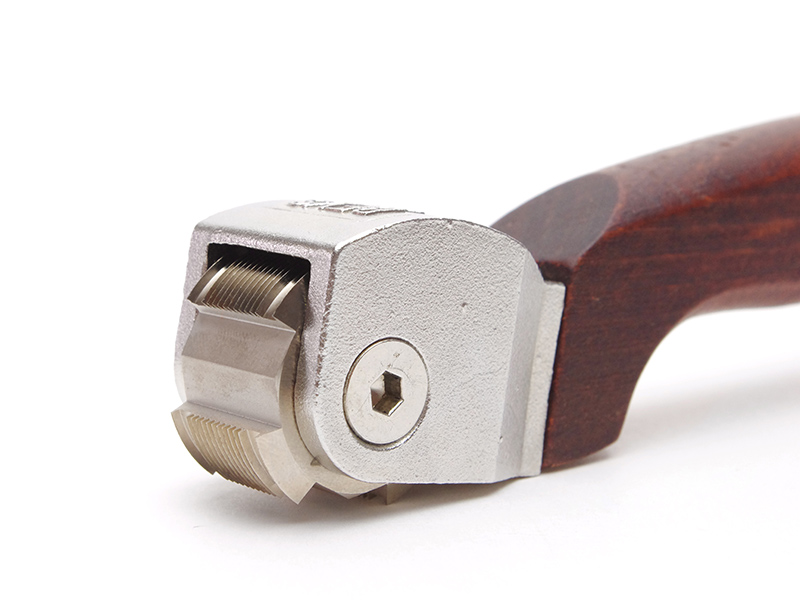

Cross Hatch Cutter
Introduction:
BEVS 2202 Cross Hatch Cutter is designed and manufactured according to ISO 2409-1992, GB/T9286-98, BS 3900 E6 and ASTM D3359 standards.
Technical Specification:

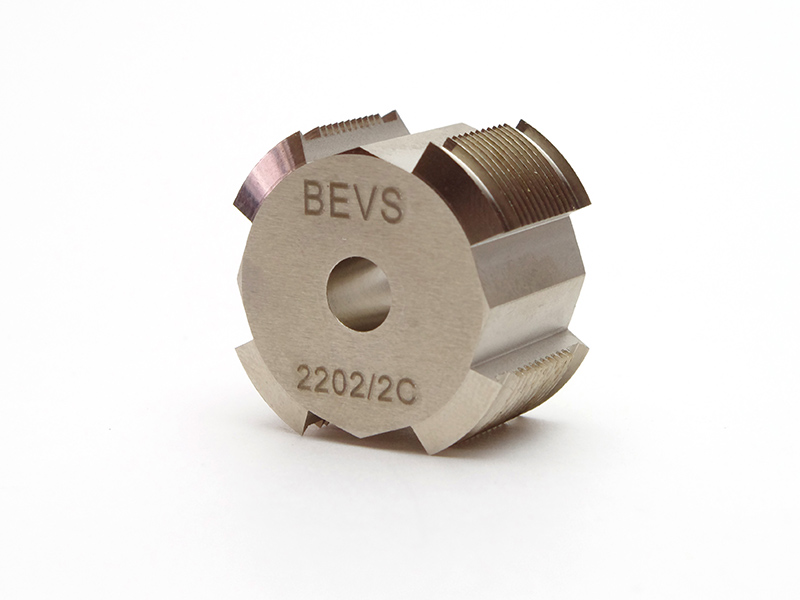

| Cutting Head No. | Gap(mm) | Blades | Cutters Edges | Coating Thickness(µm) |
| BEVS 2202/1 | 1 | 6 | 8 | 0~60 |
| BEVS 2202/2 | 1 | 11 | 8 | 0~60 |
| BEVS 2202/3 | 1.5 | 6 | 8 | 0~60 |
| BEVS 2202/4 | 2 | 6 | 8 | 61~120 |
| BEVS 2202/6 | 3 | 6 | 8 | 121~250 |
Order Information:

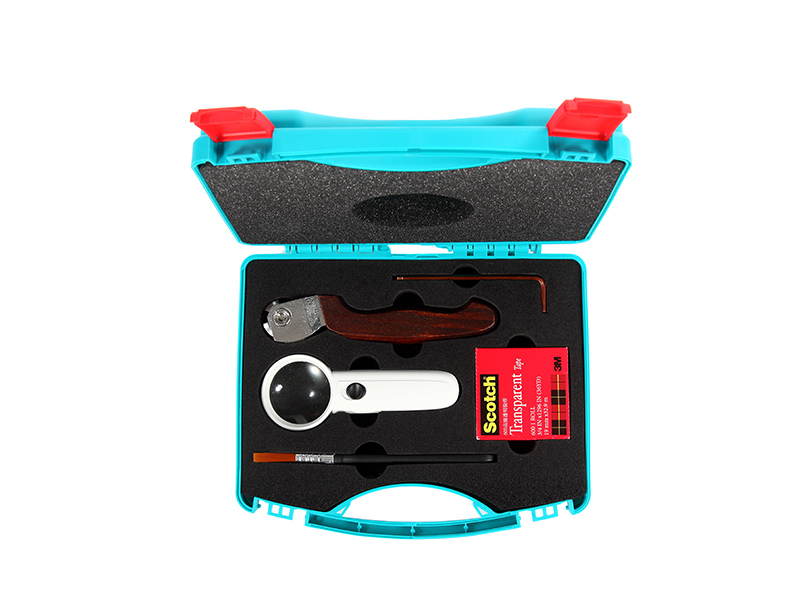

| Standard Kit | Contain |
| BEVS 2202/1C |
Cross Hatch Cutter |
| BEVS 2202/2C | |
| BEVS 2202/3C | |
| BEVS 2202/4C | |
| BEVS 2202/6C | |
| Simple Kit | Contain |

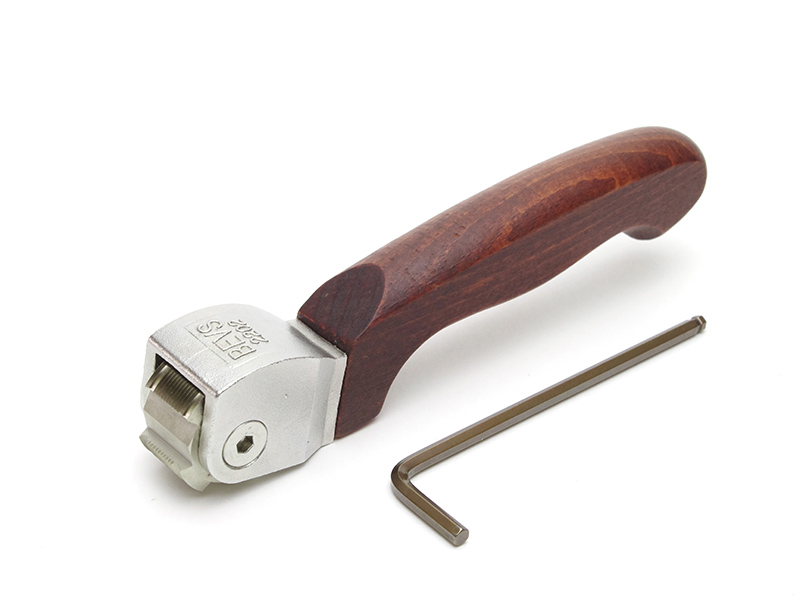

| BEVS 2202/1S | Cross Hatch Cutter + Paper Box + Hexagonal Screwdriver |
| BEVS 2202/2S | |
| BEVS 2202/3S | |
| BEVS 2202/4S | |
| BEVS 2202/6S |

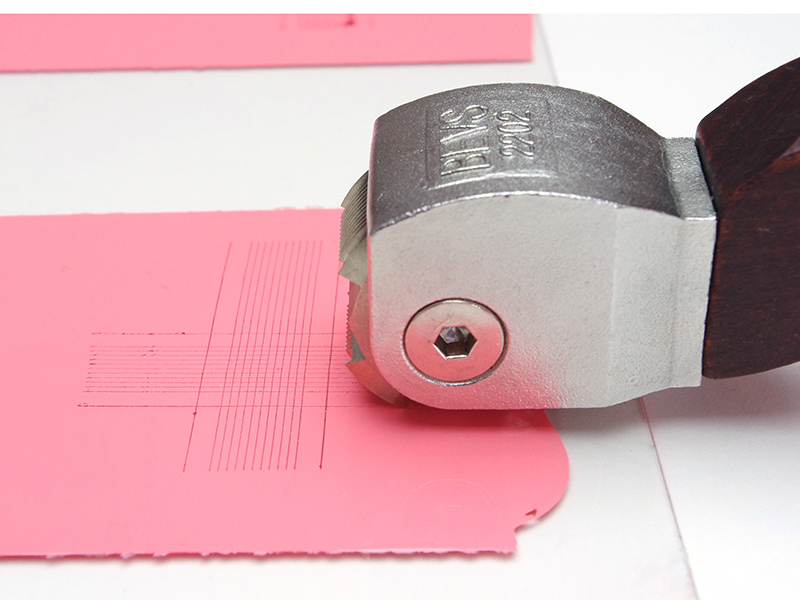

Evaluation Criteria of Coating Adhesion Test:
| Description | Performance | Class(ASTM) | Class(ISO) |
| The edges of the cuts are completely smooth; none of the squares of the lattice is detached | 5B | 0 | |
| Detachment of small flakes of the coating at the intersections of cuts. A cross-cut area not significantly greater than 5% is affected |  |
4B | 1 |
| The coating has flaked along the edges and/or at the intersections of the cuts. A cut area significantly greater than 5%, but not significantly greater than 15% is affected |  |
3B | 2 |
| The coating has flaked along the edges of the cuts partly or wholly in large ribbons, and or it has flaked partly or wholly on different parts of the squares. A cross cut area significant greater than 35% is affected |  |
2B | 3 |
| The coating has flaked along the edges of the cuts in large ribbons and/or same square have detached parity or wholly. A cross-cut area significantly greater than 35%, but not significantly greater than 60% is affected |  |
1B | 4 |
| Any degree of flaking that cannot even be classified | 0B | 5 |
