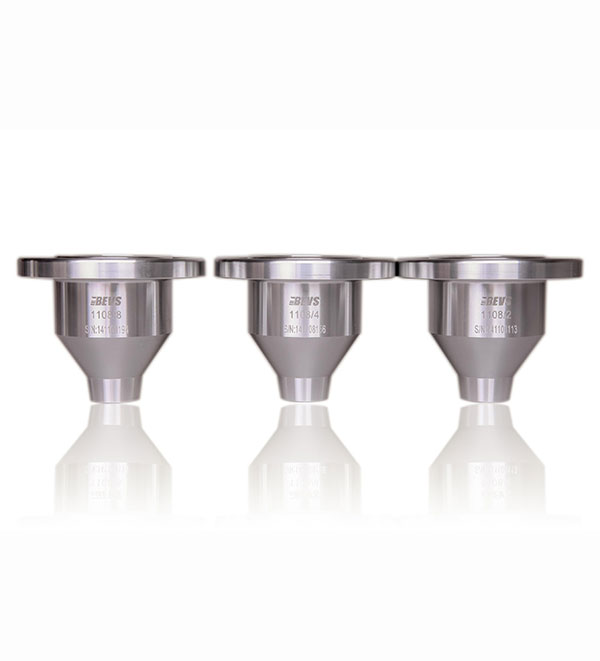

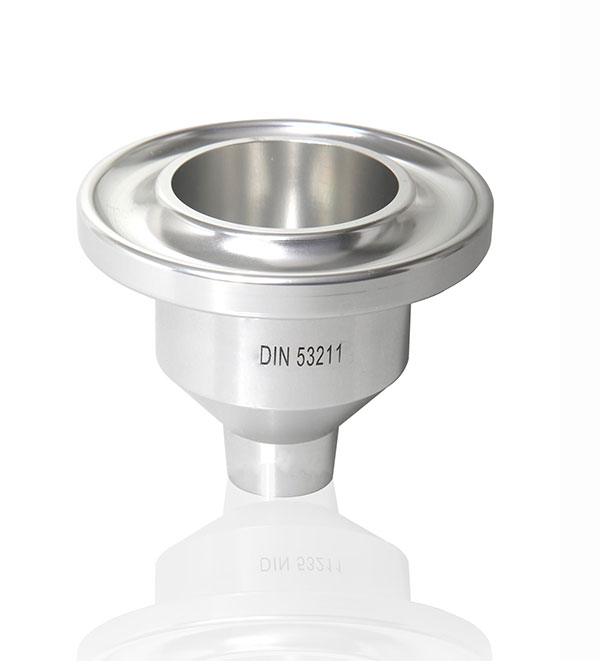

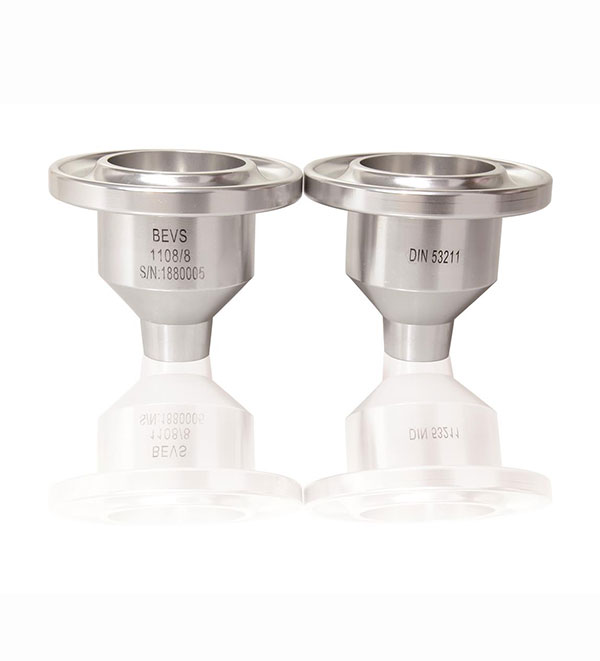

DIN Cup
Introduction:
BEVS DIN Cup is designed according to DIN 53211 standard and adapted to test the thin liquid at low viscosity.
Technical Specification:
◆Orifice Precision: ± 0.02mm
◆Volume: 100 ml
◆Material: Cup body-aluminum alloy; Nozzle-stainless steel
Standard:
DIN 53211
Order Information:
Order No. | Orifice(mm) | Viscosity Range(cSt) | Flow Time(sec) |
BEVS 1108/2 | 2 | 15~30 | 25~150 |
BEVS 1108/4 | 4 | 112~685 | 25~150 |
BEVS 1108/6 | 6 | 550~1500 | 25~150 |
