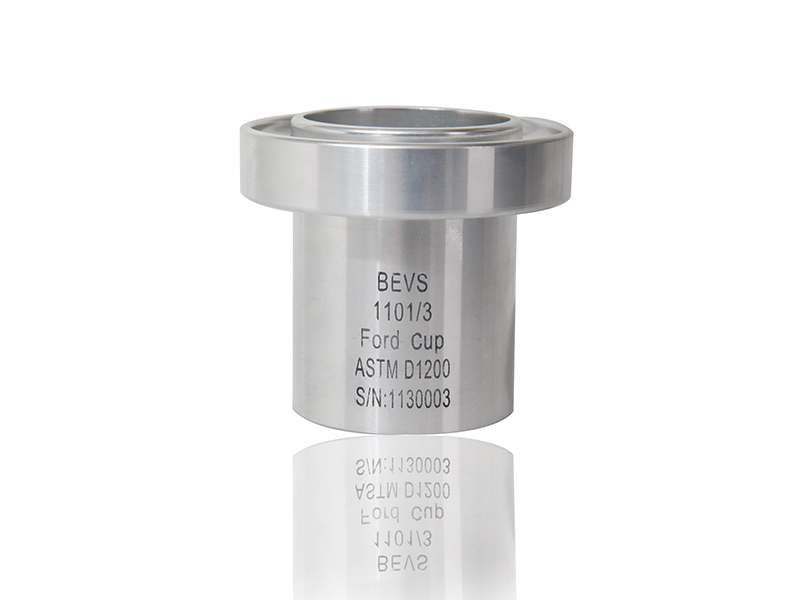

Ford Cup
Introduction:
It is designed according to ASTM D1200, D333 and D365 standards and widely used to measure the viscosity of paints,inks, lacquers and other liquids.It is made of high quality aluminum with a stainless steel nozzle insert and the capacity is 100ml. Evaluate the viscosity of the material by measuring the time of a certain amount specimen in the aluminum cup outflows from the stainless steel nozzle in the bottom.
Technical Specification:
◆Material: Cup body-aluminum alloy; Nozzle-stainless steel
◆Volume: 100 ml
Standard:
ASTM D1200, D333, D365
Order Information:

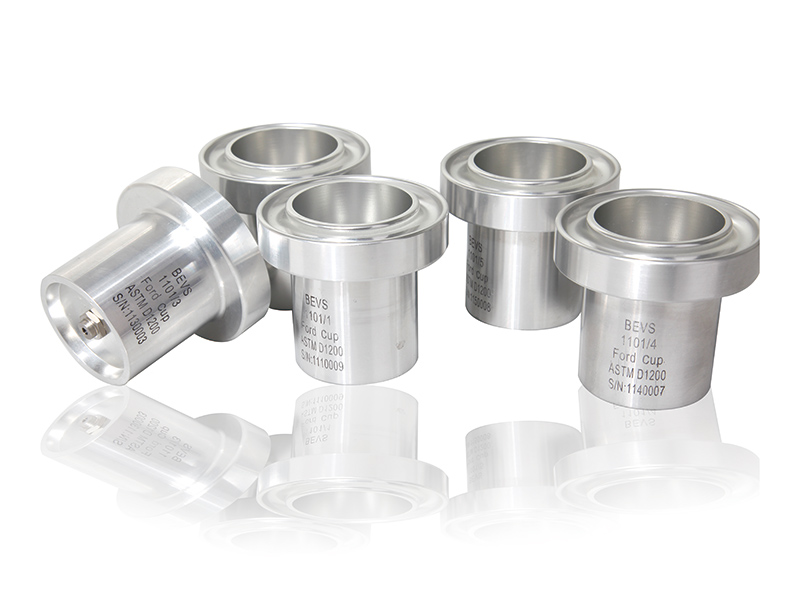

Order No. | Orifice(mm) | Viscosity Range(cSt) | Flow Time(Sec) |
BEVS 1101/1 | 2.1 | 10~35 | 55~100 |
BEVS 1101/2 | 2.8 | 25~120 | 40~100 |
BEVS 1101/3 | 3.4 | 49~220 | 30~100 |
BEVS 1101/4 | 4.1 | 70~370 | 30~100 |
BEVS 1101/5 | 5.8 | 200~1200 | 30~100 |
