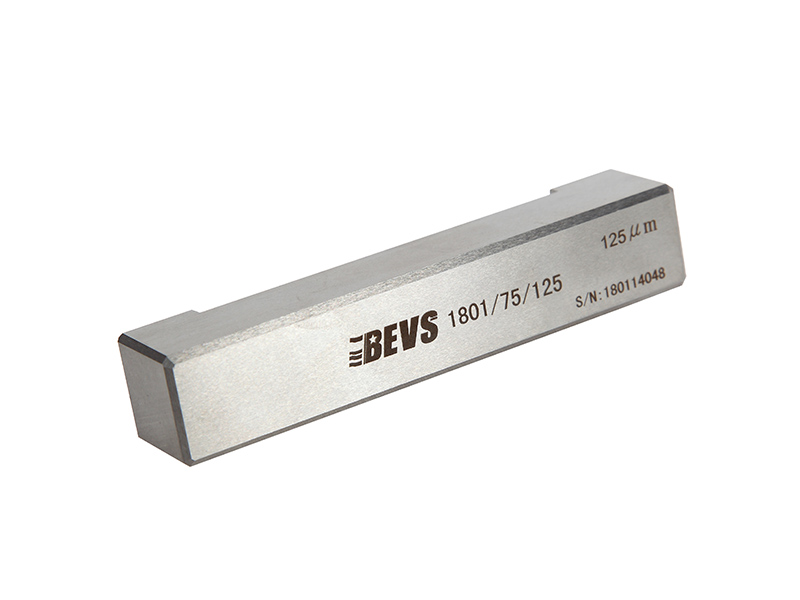

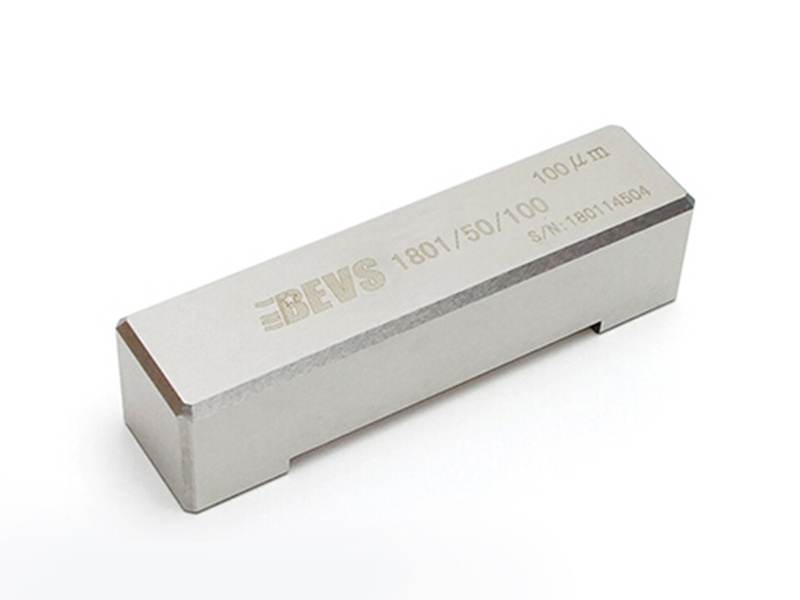

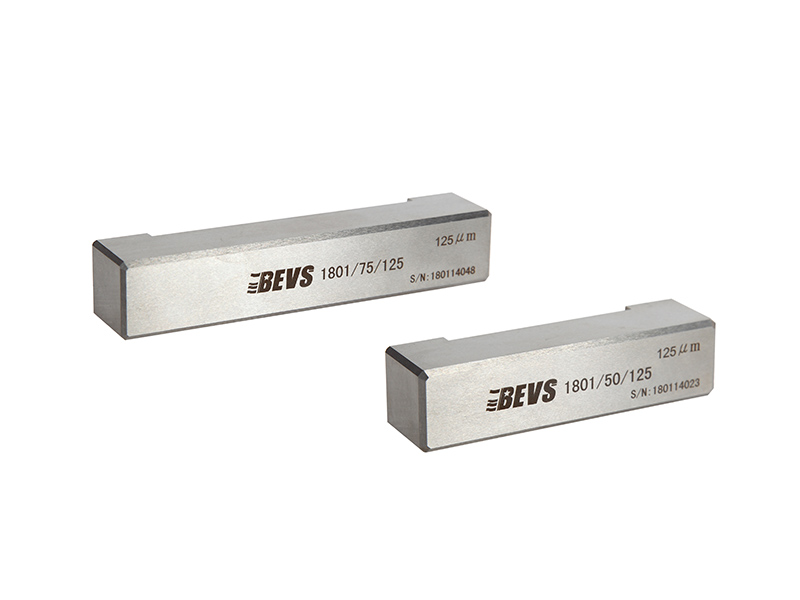

Single Sided Applicator
Introduction:
Control the actual thickness of dry film or wet film by the precise test of coating. Excellent consistency and repeatability coating is required when testing the coating opacity, abrasion sag performance and other quality tests.
Technical Specification:
◆High grade stainless steel material
◆H-Sharp design
◆Available in 2 film widths: 50 or 75 mm
◆Available in 6 film thickness gap sizes: 50, 75, 100, 125, 150 and 200 μm
Order Information:
Order No. | Film Width(mm) | Gap Size(μm) |
BEVS 1801/50/50: | 50 | 50 |
BEVS 1801/50/75: | 50 | 75 |
BEVS 1801/50/100: | 50 | 100 |
BEVS 1801/50/125: | 50 | 125 |
BEVS 1801/50/150: | 50 | 150 |
BEVS 1801/50/200: | 50 | 200 |
BEVS 1801/75/50: | 75 | 50 |
BEVS 1801/75/75: | 75 | 75 |
BEVS 1801/75/100: | 75 | 100 |
BEVS 1801/75/125: | 75 | 125 |
BEVS 1801/75/150: | 75 | 150 |
BEVS 1801/75/200: | 75 | 200 |
Other width and gap size are available upon request.
