เครื่องวัดค่าความสกปรก จุดสกปรกในกระดาษด้วยระบบ Image Analysis
03 ตุลาคม 2565
ผู้ชม 104 ผู้ชม
Dirt analyser for large size samples

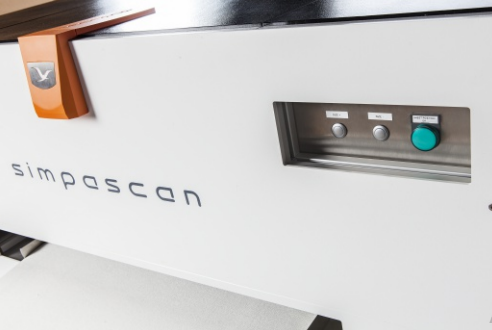

SIMPASCAN - for large sized paper samples and pulp sheets
ACCURATE MEASUREMENT OF INK, DIRT, SHIVES AND
STICKIES
SIMPASCAN is a laboratory sensor dedicated to an accurate dirt counting on:
- a paper sheet by reflected light

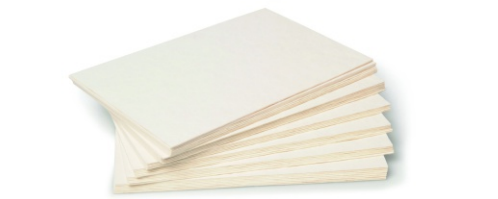

- a pulp sheet by transmitted light
Thanks to the powerful led system SIMPASCAN is able to perform scan of individual pulp sheet either by reflected light or by transmission according to ISO standards
A RELIABLE and POWERFUL TOOL
- Linear camera 12 288 pixels in full width
- Resolution : pixel size 67μm for 83 cm width
- Maximal width of the measurement area of 83 cm
- Analysis time < 1 minute
- Dimensions (lWh) 1300 mm x 750 mm x 430 mm
Calibration of the measuring system according to the EFPG standard (CEN/TC 172).
.jpg)
Detected objects
- Black spots (63μm)
- Grey spots
- Shives, Stickies

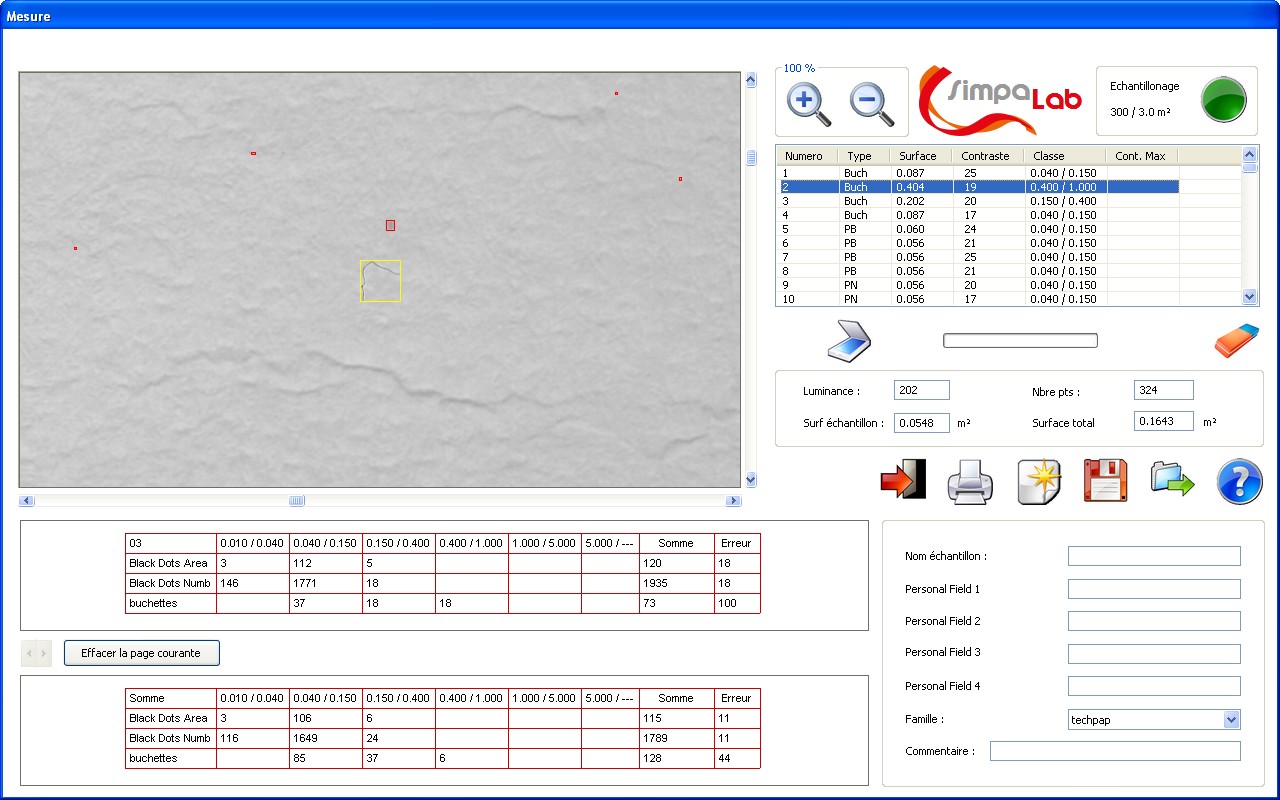

Friendly software :
1 MEASUREMENT WINDOW
- Individual investigation of each detected spot
- Results table (configurable)
1 CONFIGURATION WINDOW
- ISO classes
- 25 configurable classes
