เครื่องวัดสี (Color Meter)
หมวดหมู่สินค้า: Nippon Denshuku
รหัส : Model ZE7700
Both reflectance and transmittance measurements are possible using this one unit, with availability to measure various types of solid, liquid, powder, pellet and film samples.
27 กันยายน 2565
ผู้ชม 1733 ผู้ชม
Summary

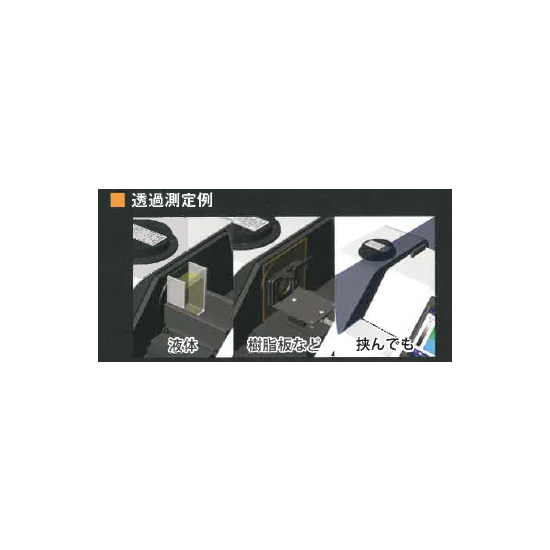

ZE 7700 is a tristimulus-value direct reading type color difference meter that enables high-precision and stable measurement by flicker photometry. Using this one color difference meter, measurements by both of reflectance and transmittance methods are possible, and various types of attachments are available for use depending on such different shapes of samples as solid, liquid, powder, pellet and film. This model is an all-in-one type instrument with easy operation, which consists of operation panel, fluorescent character display and built-in printer.
Features
- The adopted flicker photometry allows stable and highly precise measurements for a long time.
- Intermittent illumination method has been adopted, which prolongs a lamp’s life and saves running cost.
- Munsell color system (HV/C) can be selected from C/2º or D65/2º illuminant/observer.

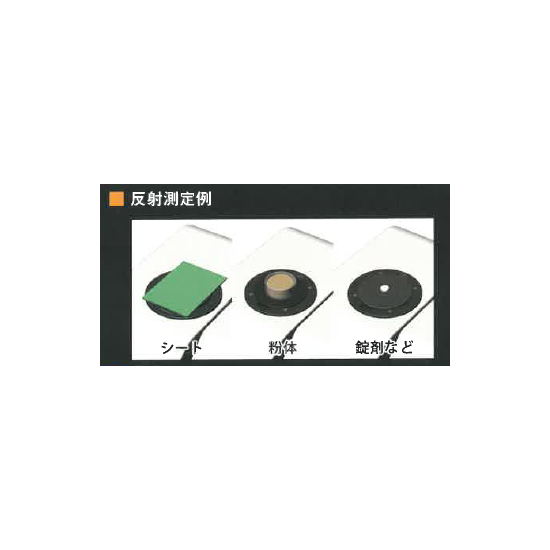

- Measuring aperture for reflectance is selectable from Φ6mm, Φ10mm or Φ30mm (Φ3mm also available in option).
- Hazen color number (APHA) and Gardner color number can be measured (in option).

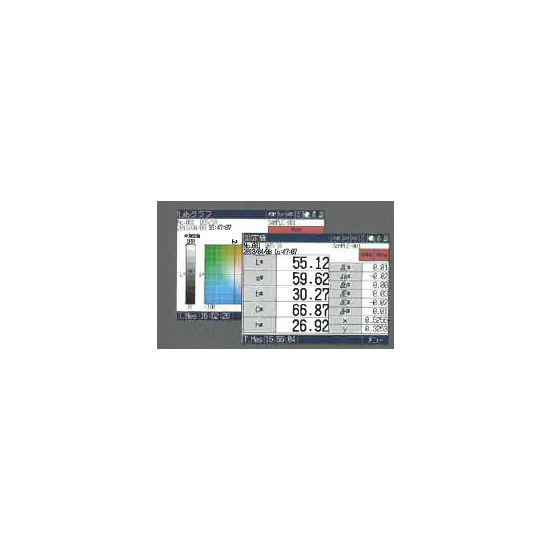

- This model is an all-in-one type instrument that consists of operation panel, fluorescent character display and built-in printer.
- Using color management software (option), analysis by measurement data and various color graphs is possible on the display of your personal computer.
Application
It will be optimum for color management of foods, painting, inks, resins, chemical products, pharmaceuticals, cement, etc.
