Versatile image analyzer for paper surface analysis

The PRECISEPRO “Versatile Image Analyzer” is a scanner-based image analysis system designed for measuring various paper surface properties i.e. visible objects/contaminants and uniformity of surface within single scan. Some of applications include measurement of dirt (according to TAPPI-T563), stickies, wax, surface uniformity, print mottle and systematic pattern. Our system is designed for effective paper quality control with flexibility to set up new measurements to meet specific needs.

Advantages

• Flexibility for customizing of measurement modules
• Multiple measurement modules (ex. dirt,formation and systematic pattern) within single scan and automatically compared with specifications for pass/fail decision
• Great flexibility to set up new measurements for your specific surface quality problems such as surface uniformity test that matches with your visual evaluation score
• Run-through mode to automatically measure all scanned images in specified folders

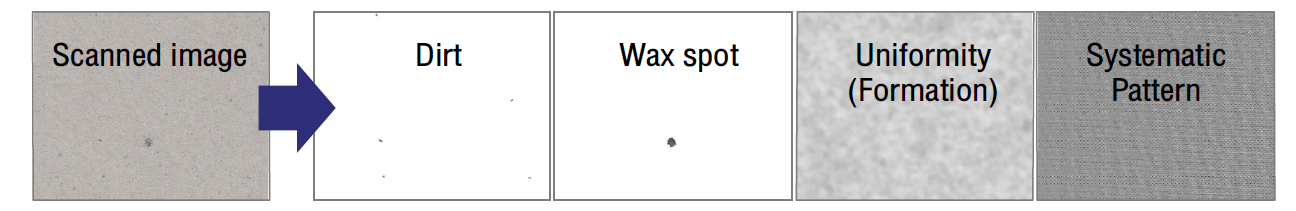

    Multiple measurements in single scan

Applications

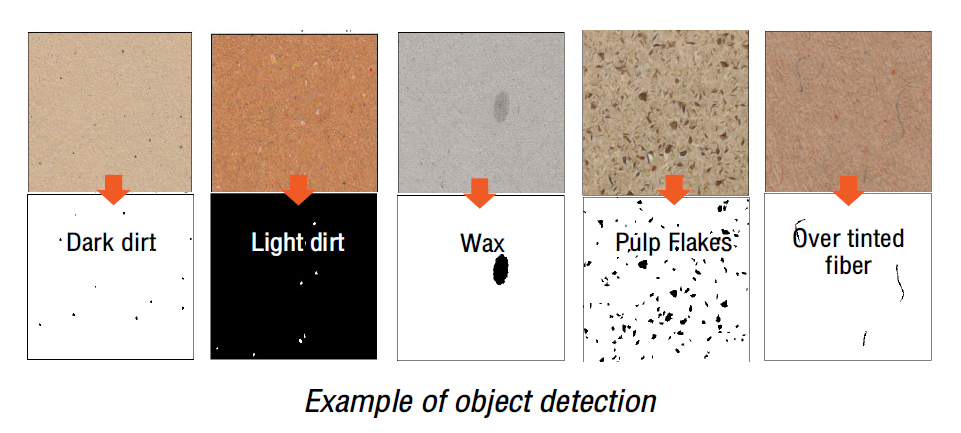

• Object detection based on color, contrast,size and shape
• Dirt (equivalent black area, EBA,both dark and light contaminants)
• Wax spots
• Stickies on black filter paper (according to TAPPI T237)
• Shives and flakes in pulp handsheet
• Over tinted fiber
• Print un-coverage
• Other customized measurements is available upon request

• Surface uniformity (available module)
• Paper surface uniformity (surface formation)
• Coating uniformity
• Print mottle
• Systematic pattern such as couch and wire marking on the surface
• Wash-boarding and print banding of corrugated board
• Other customized measurements is available upon request

Example of surface uniformity

PRECISEPRO : Image Analysis Software

• User friendly
• Easy to use for routine quality control and also great tools for problem analysis
• Test results are saved in CSV format and can be opened in MS Excel
• Auto generated test report in PDF format

Convenient

• Selectable measurement modules of your needs or request new measurements to match your specificquality problems
• Software is designed for easily setup new test methods for specific needs
• Multiple measurements in single scan and compared with specifications for pass/fail decision
• No need to purchase specific testers (ex. dirt and formation) separately
• Run-through mode for measuring multiple images in the folder to save measurement time

Reliable and Powerful

• T563 pre-calibrated
• Already proven installments

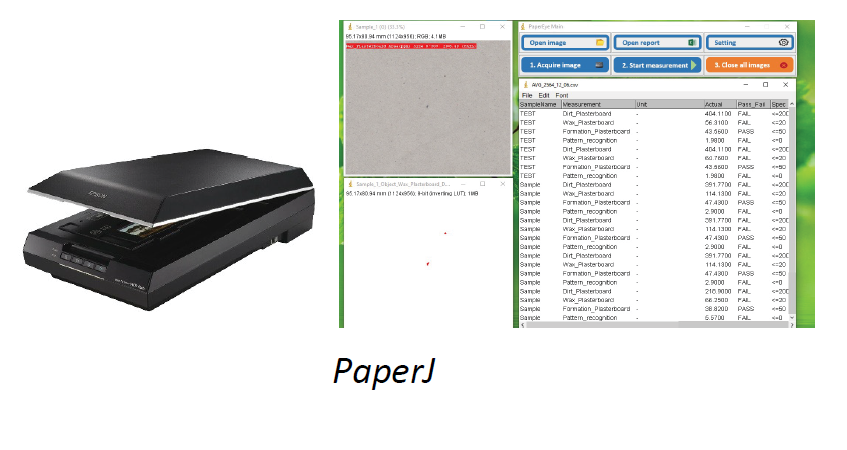

System and Connection

• High quality flatbed scanner with TAPPI-T563 pre-calibrated. Maximum resolution 6400 dpi.
• Scanning Speed for A4 sheet: approx. 7 sec for 150 dpi, 10 sec for 300 dpi and 25 sec for 600 dpi Runs on PC with windows 7 and up
