Pasol Oxidation Stability Analyzer

หมวดหมู่สินค้า: biolab
รหัส :

04 มกราคม 2567

ผู้ชม 85 ผู้ชม

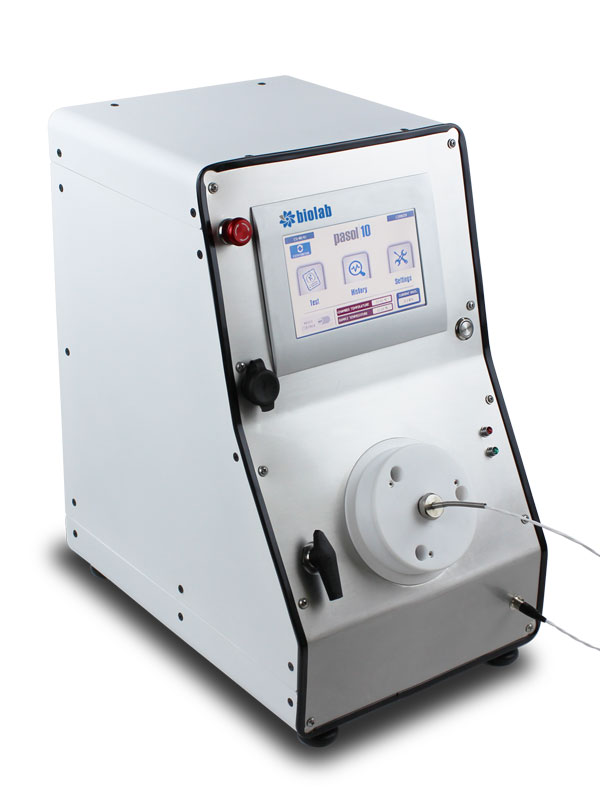

Pasol Oxidation Stability Analyzer

Pasol Oxidation Stability Analyzer utilizes an oxygen pressured dry vessel to evaluate the oxidation stability of new and used oils in the presence of water and a copper catalyst coil at 150°C according to ASTM D2272 (RPVOT), D2112, D4742, D942 and IP229 standards.

  • RPVOT – ASTM D2272  – Standard Test Method for Oxidation Stability of Steam Turbine Oils by Rotating Pressure Vessel
  • TFOUT – ASTM D4742  – Standard Test Method for Oxidation Stability of Gasoline Automotive Engine Oils by Thin-Film Oxygen Uptake
  • TFOUT – ASTM D7098  Catalyst B – Standard Test Method for Oxidation Stability of Lubricants by Thin-Film Oxygen Uptake
  • ASTM D942 – Standard Test Method for Oxidation Stability of Lubricating Greases by the Oxygen Pressure Vessel Method

Oxidation stability is a chemical process that occurs when lubricating oil is effected by oxygen. High working temperature, water, acids, and catalysts speed up the oxidation process. Remaining life of a lubricant is shortened especially at high temperatures. Additionally, oxidation causes an increase in the viscosity, as well as varnish and sludge deposits.

The Rotating Pressure Vessel Oxidation Test (RPVOT) is a method to measure resistance to oil oxidation instead of the oxidation that is already present in the oil as other methods offer.

Oxidation in oils, such as lubricating, hydraulic, pump, and other oils, is one main cause of mechanical malfunction. Therefore monitoring oxidation resistance of oils help to prevent machinery break downs.

Pasol Oxidation Stability Analyzer Features:
    • Built-in Windows based Touch Panel IPC to control and monitor all operations
    • Real time monitoring of sample temperature during the analysis (standard)
    • Method creation and selection directly from the touch panel
    • Front and rear USB ports to transfer all records to flash drive or PC
    • Ethernet connection port to link up to 12 instruments
    • Last generation user-friendly software for all operational controls
    • Reports and graph data with all analysis parameters including the sample temperature
    • Automatic pressure regulation prior to the analysis
    • Direct monitoring of latest 100 results
    • Graph report transfer to USB and PC environment after analysis
    • Over temperature and over pressure interlocks
    • Temperature selection of °C or °F
    • Display pressure in bar/psi/Kpa
    • Real time graph monitoring
    • Automatic graph record after the analysis in jpeg format
    • Ready-to-use chiller connections for rapid cooling
    • Automatic termination of analysis according to users’ choice
    • Easy accessible analysis chamber
    • Stand-alone oxidation stability tester
    • Automatic venting of hazardous gases
    • Internal insulated stainless steel chamber
    • Magnetic rotation of internal cylinder
    • Easy dismountable sample cups
    • Small Footprint
Technical Info
Monitoring
Real time pressure and temperature
Test chamber
Stainless steel dry vessel
Rotation
Magnetic contactless strirrer
Temperature precision
0.001 °C
Time detection precision
0.1 s
Data Transfer
USB &P C
Weight
40 Kg
Dimensions
30 x 50 x 80 cm
Power requirement
220 VAC – 50 Hz
