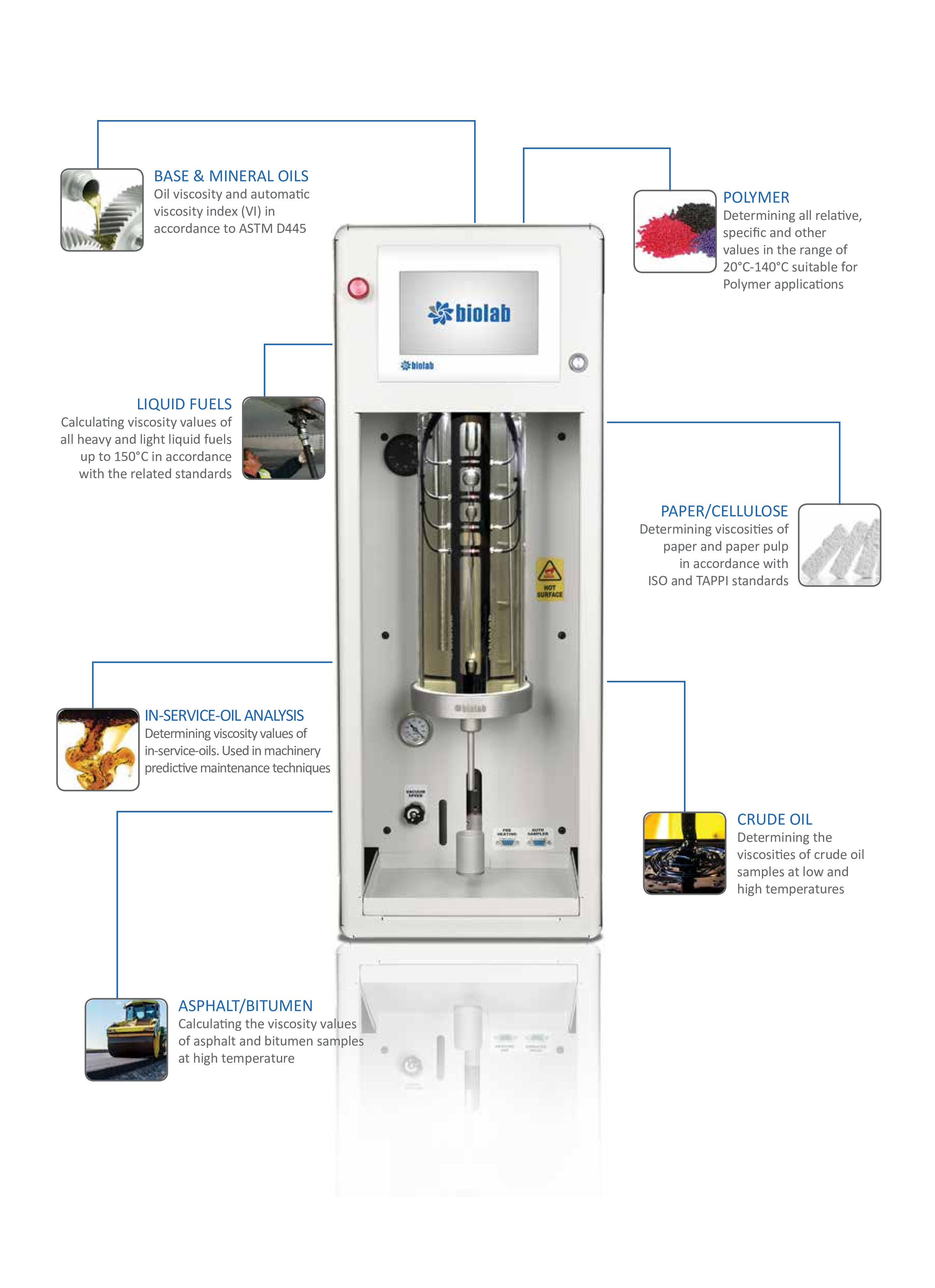

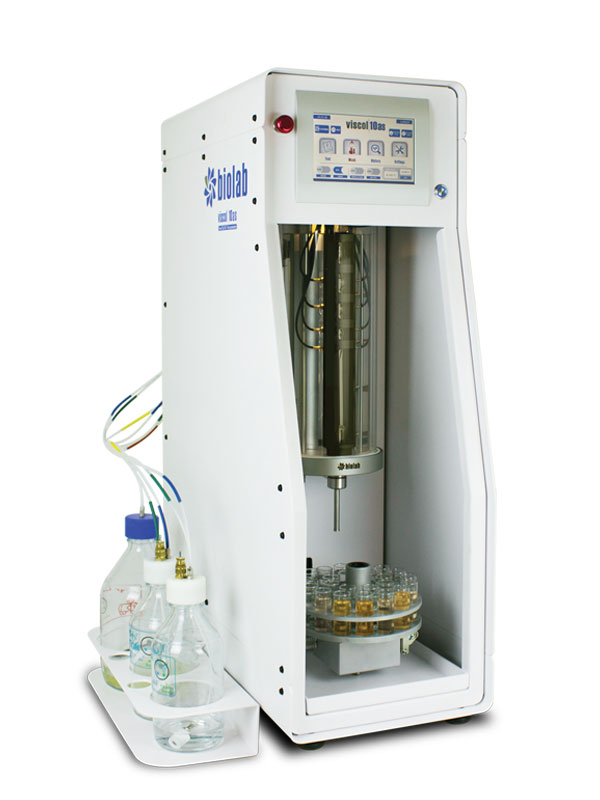

Viscol 10 Series Automatic Kinematic Viscometer
Viscosity is defined as the rate of a fluid’s internal resistance to the force that is required to flow. Intermolecular force, molecular mass and temperature of a fluid is considered as the three main factors effecting the viscosity. Fluids such as water, air, oil etc. that have directly proportional flow rate with friction resistance are called as Newtonian fluids. Best method to measure viscosity of Newtonian fluids is by using capillary viscometers. With capillary viscometers, viscosity is determined based on the flow time of a fluid which is kept at a specific temperature inside a capillary with known diameter and length. Viscol-10 Series, fully-automatic kinematic viscometers, equipped by the latest temperature control, detector, chronometer and washing specifications with different models for oil, fuel, bitumen, polymer, paper, food and similar industrial demands. Viscol-10 Series viscometers provide the most reliable results for research, development and quality control practices without any user intervention.
General Specifications
• Adjustable bath temperature between -30°C to 170°C
• Sensitive temperature control (+/- 0.001°C)
• Flow detection sensitivity of 0.001 seconds
• Built-in rapid-cooling unit
• Preheating unit for solid and heavy samples
• Analysis capacity from 0,5 cSt to 25.000 cSt
• Low solvent consumption and waste output
• Fully-automatic measuring, washing and drying functions
• Built-in single and dual solvent washing function
• Windows-based integrated touch-screen IPC
• USB data transfer
• Leakage and high temperature warning system
• Benchtop, easy-to-operate, ergonomic structure

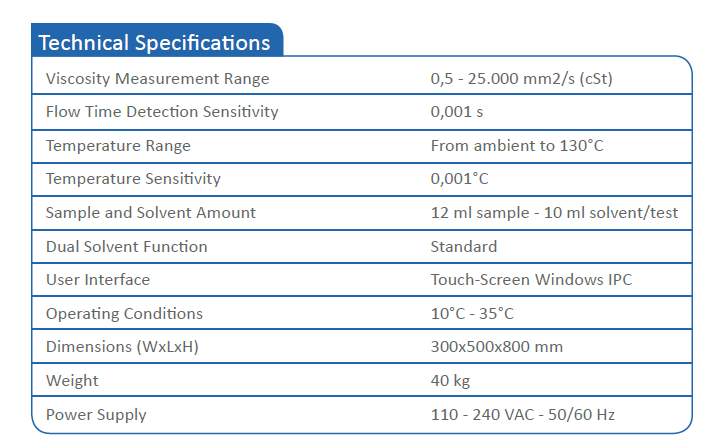

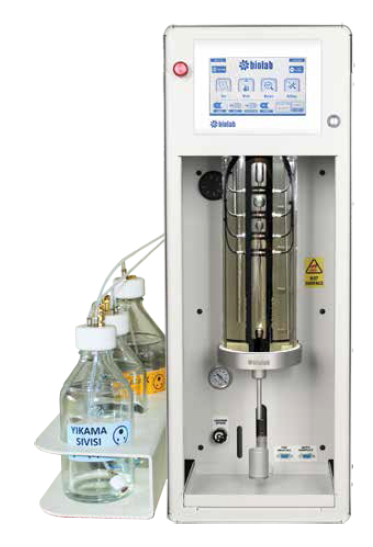

Viscol 10A
Oil & Fuel Viscometer

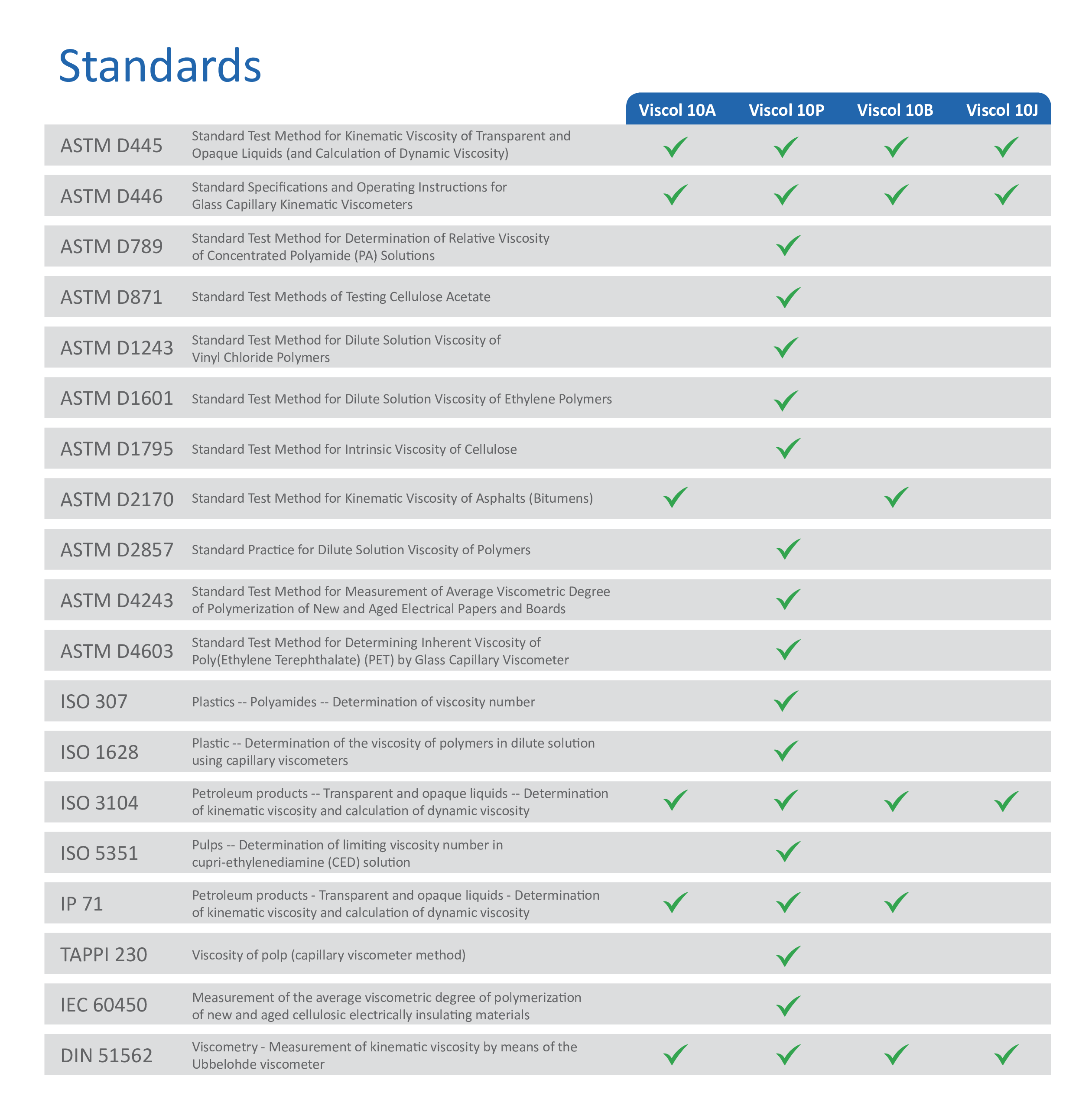

ASTM D445, ASTM D446, ISO 3104, ISO 3105, IP 71, DIN 51562
Viscol 10A, developed to automatically measure kinematic viscosity of oils and fuels at 40°C and 100°C in a single high precision bath with all necessary components including rapid cooling unit.
Areas of Use
• Mineral and Base Oils
• Used and Waste Oils
• Light and Heavy Fuels
• Crude Oil
• Marine Fuels

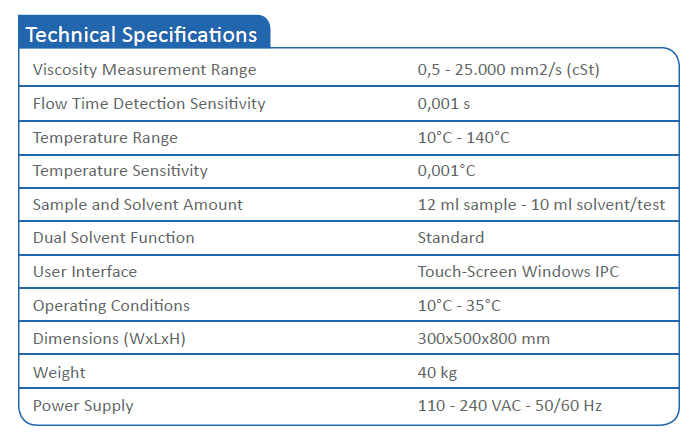

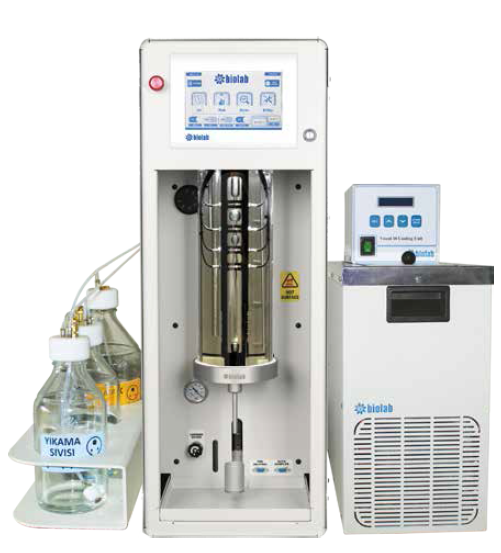

Viscol 10P
Plastic/Polymer Viscometer
ASTM D2857, ASTM D789,ASTM D4603, ASTM D1243,ASTM D1795, ASTM D4243,ASTM D871, ISO 1628, ISO 307,ISO 5351, IEC 60450, TAPPI 230
Viscol 10P, developed with acid resistive teflon and glass components for various polymer and plastic applications to measure viscosity values between 10°C - 140°C without any user intervation.
Relative, specific, reduced and intrinsic viscosity values
Areas of Use
• Plastic Applications
• Polymer Applications
• Paper / Cellulose

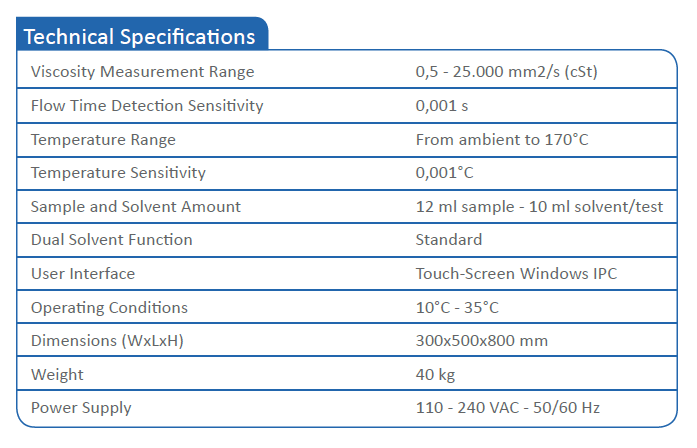

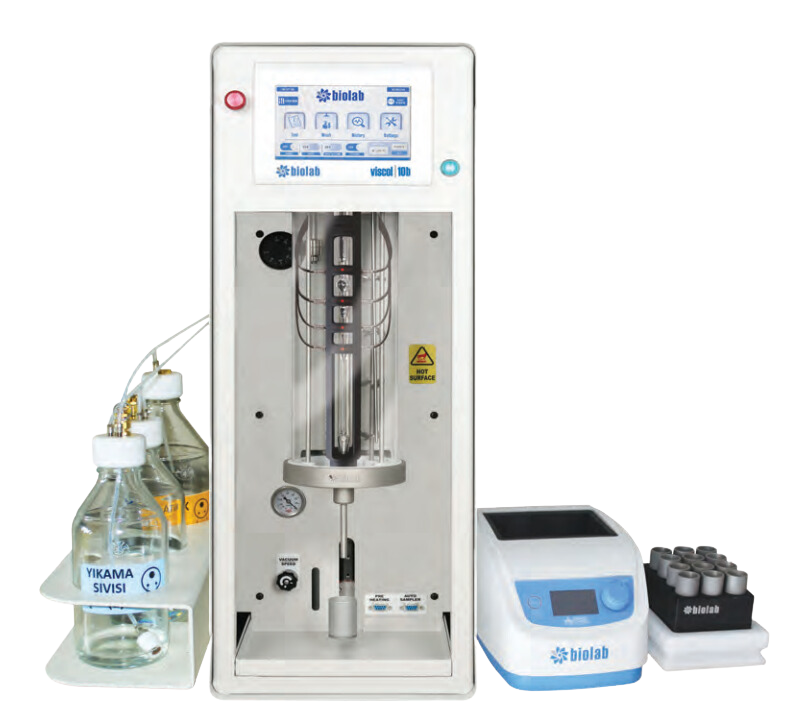

Viscol 10B
Asphalt/Bitumen Viscometer
ASTM D445/D446, ASTM D2170,ISO 3104, ISO 3105, IP 71, DIN 51562
Viscol 10B is suitable for viscosity measurements of heavy samples as asphalt, bitumen and etc. up to 170°C with its integrated and external preheating options.
Areas of Use
• Mineral and Base Oils
• Used and Waste Oils
• Light and Heavy Fuels
• Crude Oil
• Marine Fuels
• Asphalt/Bitumen

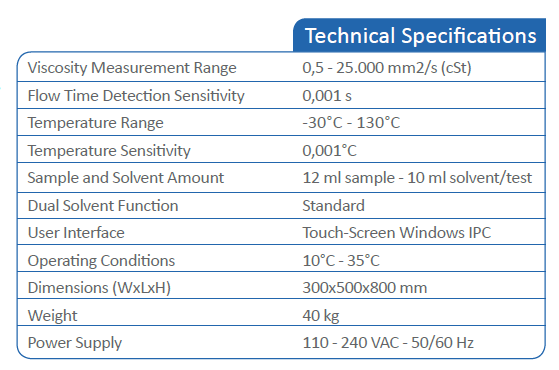

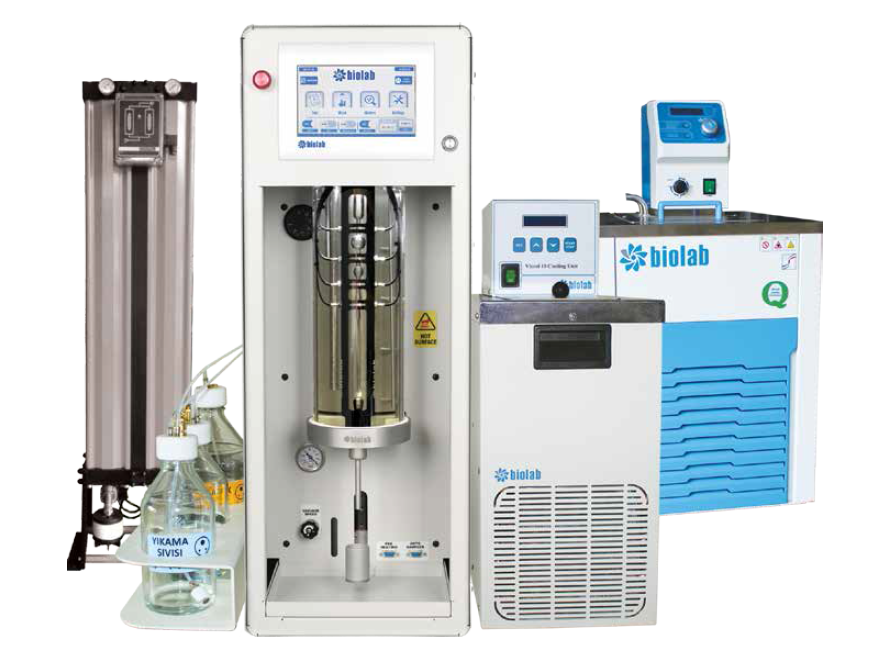

Viscol 10J
Low Temperature Viscometer
ASTM D445, ASTM D446, ISO 3104, ISO 3105,
Viscol 10J is suitable for sensitive viscositymeasurements down to -30°C for jet fuels and similar applications.
Special BKS washing and drying system
Areas of use
• Jet fuels
• Transmission oils
• Hydraulic oils
Options
• Preheating unit for intensive and solid samples
• Cooling unit for below ambient applications
• Up to 170°C for high temperature applications
Replacement Parts & Consumables
• Multi-folds viscometer capillary tubes
• Certified viscosity reference standards
• Silicon bath oil
• Sample containers PE, glass and metal
• Wash solvent
