THE AUTOMATED SIDE OF SAFE FLASH POINT TESTING

หมวดหมู่สินค้า: Eralytics
รหัส : ERAFLASH S10 AUTOSAMPLER
eralytics’ flash point autosampler ERAFLASH S10 combines the safest measurement with a 10-position autosampler. The inherently safe CCCFP methods ASTM D7094, ASTM D6450, and IP620 are ideal for unattended measurements. ERAFLASH S10 ignites the vapors of 1-2 ml of the sample inside a closed chamber and measures according to the pressure increase.

01 มิถุนายน 2566

ผู้ชม 476 ผู้ชม

Autosampler for Flash Point Testing

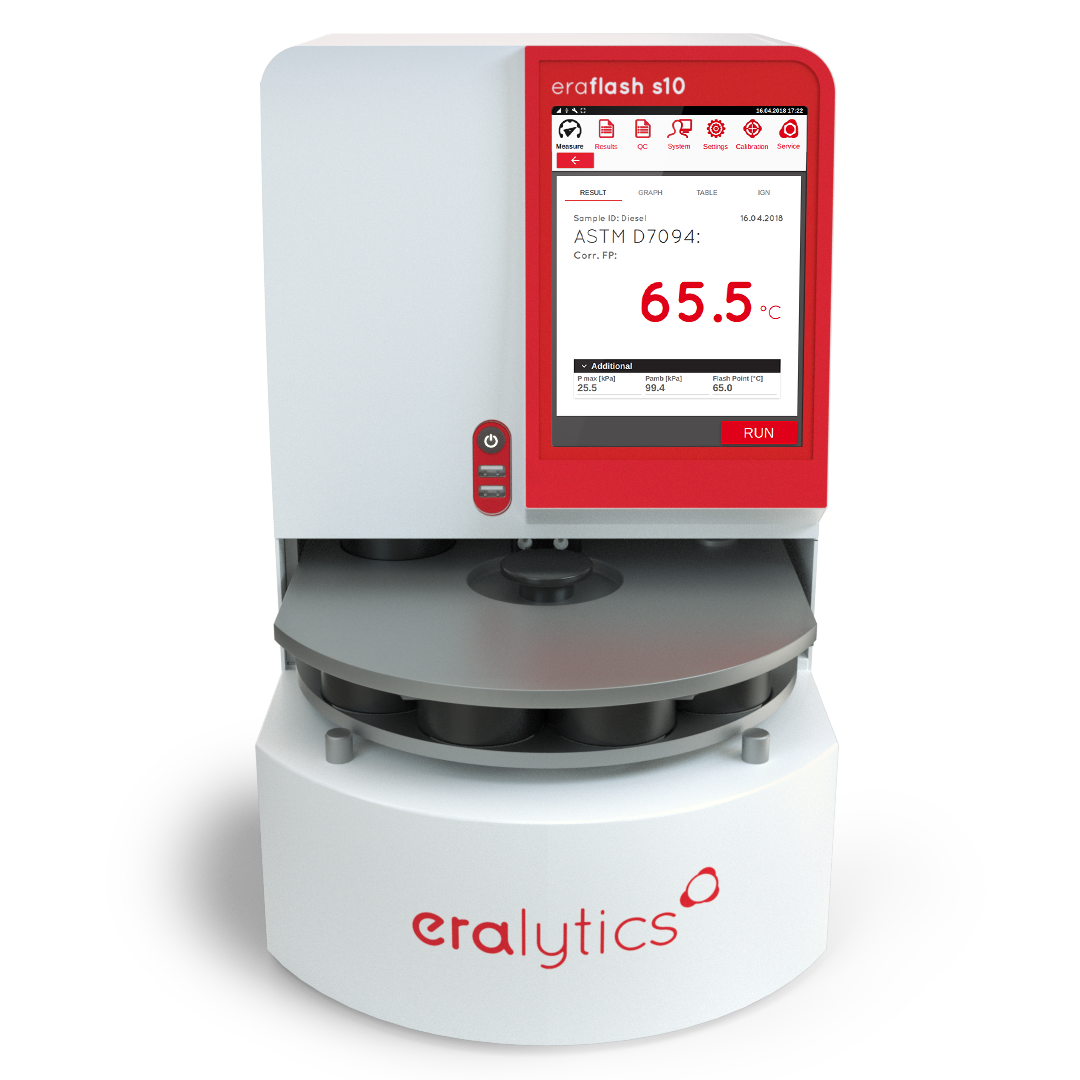

      ERAFLASH S10 is the first 10-position autosampler for flash point testing. It uses the inherently safe methods ASTM D7094, ASTM D6450, and IP620. With a low sample volume of only 1-2 ml and the continuously closed sample cups, they are ideally suited to build a completely safe autosampler for flash point testing. ERAFLASH S10 is the perfect solution for high-throughput laboratories and takes up very little laboratory space.

       This makes ERAFLASH S10 the ideal analyzer for unattended flash point testing.

Cost-efficient Fast Flash Point Testing

      When looking at valuable products, especially with small batch sizes, flash point testing using the well-known Pensky Martens principle can consume a significant amount of sample, thus leading to high analytical costs. When performing flash point testing according to ASTM D7094 and IP620  just 2 ml of the sample are needed. ASTM D6450 reduces this volume even further to 1 ml.

      ERAFLASH S10 is therefore a welcome addition to testing labs handling large amounts of costly samples every day. This includes fragrances, paints, and varnishes producers.



Peltier Boost Technology™

      Similar to eralytics’ single position flash point tester the patented PBT – Peltier Boost Technology™ allows flash point testing below 0 °C (32 °F) and above 200 °C (392 °F) with a single instrument. PBT separates the Peltier elements during the heat up at 100 °C shielding them from higher temperatures that would normally harm them. During the cool down, however, they can be used for active cooling starting at 200 °C and thus reduce the turnaround time significantly. PBT also facilitates the same temperature range of -25 °C (-13 °F) to 420 °C (788 °F) of our single position flash point tester in an autosampler for flash point testing.

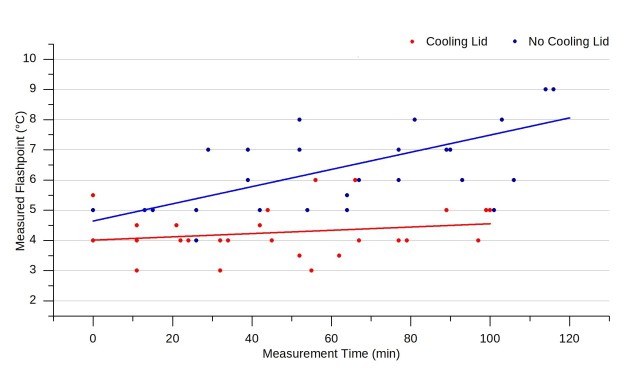

A Cooling Lid for Shorter Turnaround Times

        ERAFLASH S10’s optional cooling lid is an unsurpassed benefit, especially in applications that involve highly volatile samples. The lid keeps the pending samples at a stable temperature, which makes volatile compounds far less likely to evaporate before their measurement starts. Therefore, results are more precise and more reliable. With pre-cooled sample cups cooling during the measurement can be less intense, which results in shorter turnaround times.

Measurement Procedure

       Just four easy steps are required for an unattended safe and fast flash point testing at maximum precision:

  • Enter sample IDs and operator name
  • Select the measurement standards and add additional parameters (e.g. expected flash point)

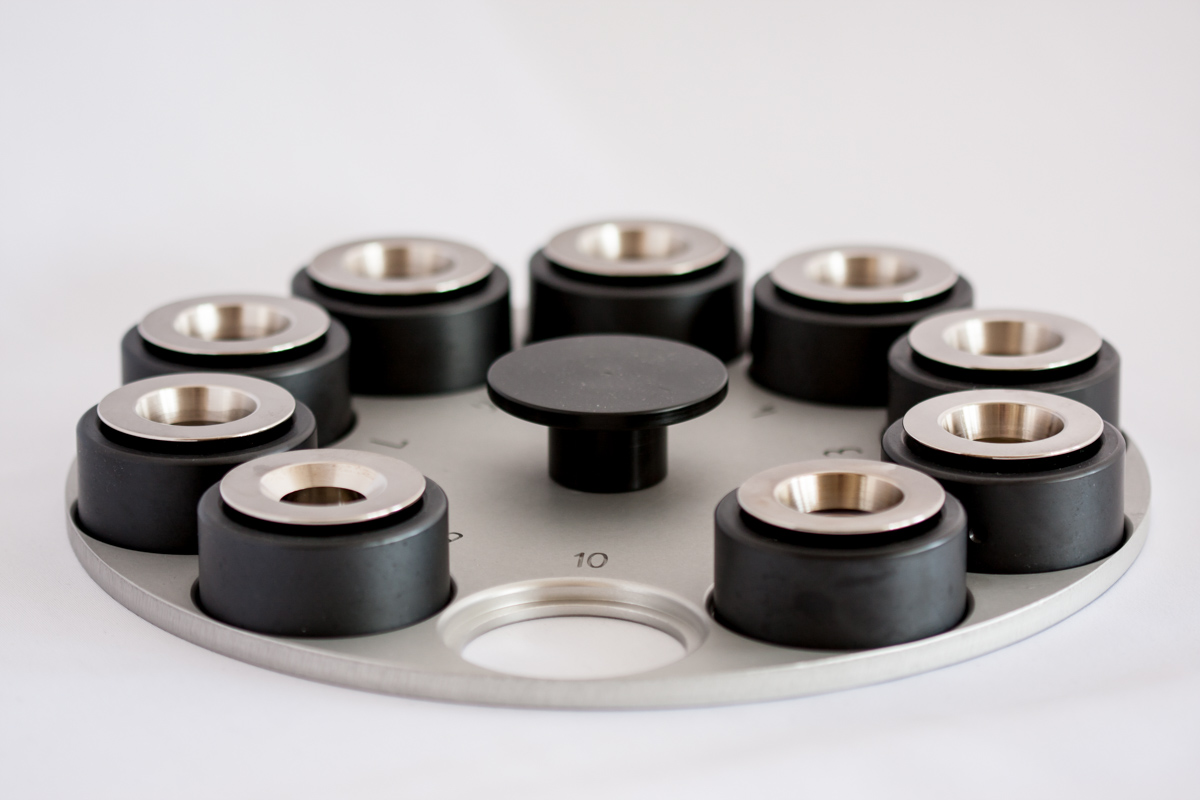

  • Fill up to 10 sample cups with samples, place the sample cups on the carousel and close the cover plate
  • Press the RUN button

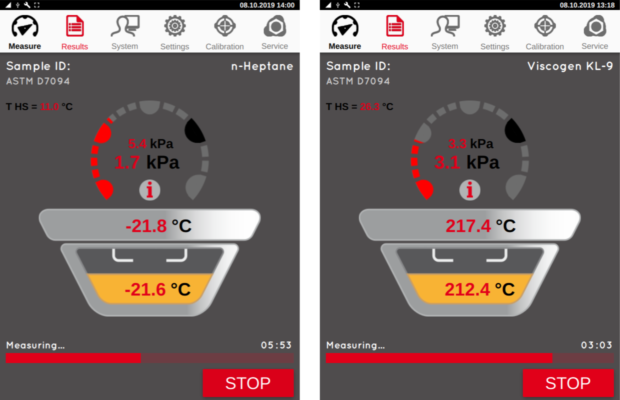

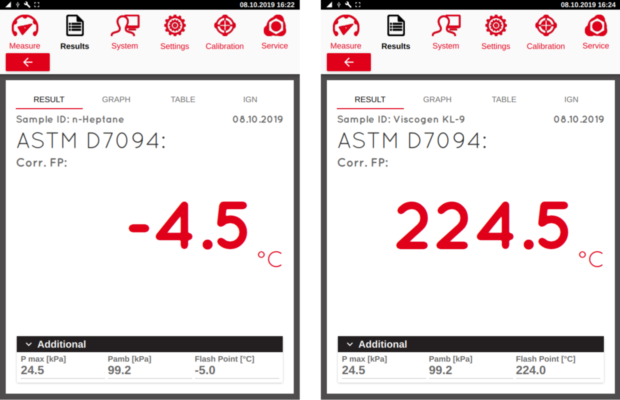

       During flash point testing the instrument visualizes the measurement procedure on the screen showing the sample and oven temperature as well as pressure gauge displaying the pressure increase after ignition. Additional information about the currently measured sample, as well as finished and still samples to be measured are displayed. After the measurements the flash point temperature is corrected for the atmospheric pressure and rounded to the next 0.5°C. All results will be saved in the corresponding result file.



Technical Specifications

Available Test Methods ASTM D6450, ASTM D7094, IP620, SH/T 0768
Pre-Programmed Correlation Methods to Pensky Martens Closed Cup: ASTM D93, EN ISO 2719, DIN 51758, IP34, JIS K2265
TAG Closed Cup: ASTM D56
Abel Pensky Closed Cup: ISO 13736, IP170
Small Scale Closed Cup and Flash / No Flash methods: EN ISO 3679, EN ISO 3680, ASTM D3828
Fuel Specifications (ASTM D7094) ASTM D396, ASTM D975, ASTM D2880, ASTM D3699, ASTM D7467
 Speed Tests Fast screening test programs for unknown samples
 Sample Handling 10 position autosampler
 PBT - Peltier Boost Technology™ High speed heating & cooling
-25 °C to 420 °C (-13 °F to 788 °F) with a single analyzer
 CPT - Contamination Prevention Technology™ Advanced electrode protection and self-cleaning ignition system to minimize cleaning and maintenance
 Combustion Graphics™ Display of combustion characteristics for contamination analysis
 QC Mode Built-in quality control mode including on-screen QC charts
 Cooling Lid Temperature 5 °C to 30 °C (optional)
 QuickCal™ In-situ calibration with eralytics unique calibration cups without the need of dismantling the instrument
 Fuel Dilution Program Automatic fuel dilution measurement for the analysis of used engine oils
 Temperature Range 0 °C to 200 °C (32 °F to 390 °F) stand alone. No external cooling is required.
Down to -25 °C (-13 °F) oven temperature with external cooling
Up to 420 °C (788 °F) with optional High Temperature Module (EF01-HTM)
 Temperature Stability 0.1 °C (0.2 °F)
 Unattended Sample Throughput 10 loaded samples within approximately 45 minutes (depending on temperature range)
 Sample Volume 1 mL (ASTM D6450), 2 mL (ASTM D7094)
 Sample Cups Nickle plated aluminium, stainless steel cups available upon request
 Display Industry proven 8.4" color touchscreen
 Languages English, German, French, Spanish, Russian, Chinese
Additional langages available upon request
 Interfaces Built-in PC with Ethernet, USB and RS232 interfaces
Direct LIMS connectivity and output to printer or PC
Optional input by external keyboard, mouse and barcode / QR-code reader
Wifi via external USB dongle
Remote Control Remote service capability via Ethernet interface
PC Software ERASOFT RCS - remote control Windows® software for multi-instrument remote control, convenient data transfer andresult analysis
Result Database Over 100 000 detailed test reports stored in internal memory
Alarm Tracking All alarm messages are stored in the database together with the results
Operating Conditions Temperature range 10 °C to 40 °C
Humidity up to 90% RH, non-condensing
Power Requirements Auto-switching 85-264 V AC, 47-63 Hz, max. 150 W (multi-voltage power supply)
Field application: 12 V DC (vehicle battery) adapter available
Dimensions / Weight 30 x 37 x 45 cm (11.8 x 14.6 x 17.7 in) / 14.5 kg (32 lb)
