RDE-OES SPECTROMETER FOR ELEMENTAL ANALYSIS
30 พฤษภาคม 2566
ผู้ชม 276 ผู้ชม

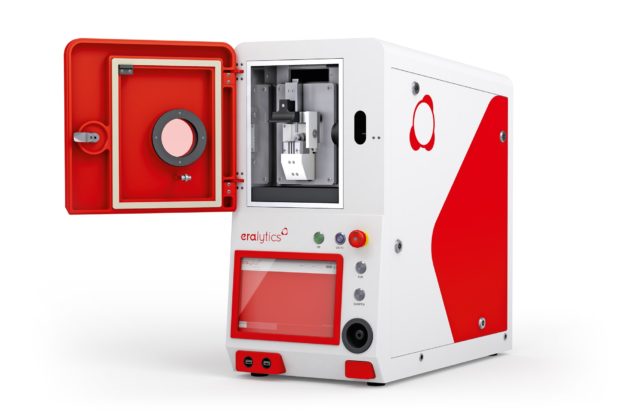

Smallest footprint with built-in PC
ERAOIL’s unique stand-alone design offers a rugged all-in-one package for operation even in the smallest on-site testing labs. It comes with a built-in 10” color touchscreen and a PC. Even an electrode sharpener and an automatic ventilation system are integrated into the ERAOIL. Still, it is the RDE-OES analyzer with the smallest footprint on the market. ERAOIL is very easy to use even for untrained operators. The automated measuring procedure follows simple steps and is therefore perfect for on-site inspection: Just fill the sample cup, close the door, and push the start button. The elemental concentration is available immediately.

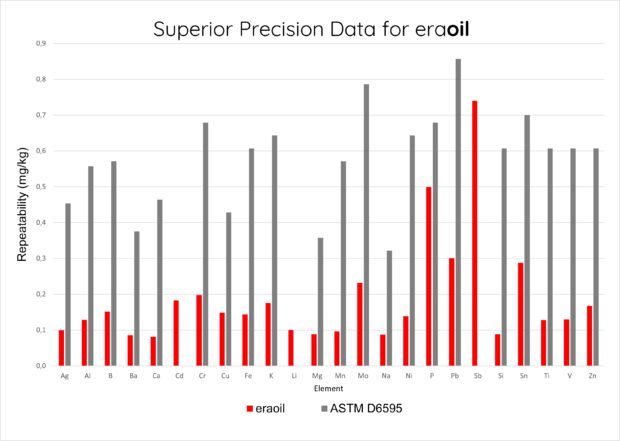

High-precision oil & fuel analysis
ERAOIL is fully compliant with ASTM D6595 (oil) and ASTM D6728 (fuel). ASTM D6595 is the standard for identifying wear metals and contaminants in used lubricating oils and used hydraulic fluids by rotating disc electrode atomic emission spectrometry. For determinating contaminants in gas turbine and diesel engine fuel, ASTM D6728 is the standard of choice. To protect finished fuels against trace contamination ERAOIL is available with the special Low Detection Fuel Module to detect e.g. Potassium, Lithium, Sodium and Vanadium at LOD levels of as low as 0.1 ppm.
Applications
Multi-elemental analysis is the core of in-service oil analysis. ERAOIL is the perfect solution for wear metal analysis of lubricants from engines, transmissions, hydraulic systems and gears boxes. The fast and easy elemental analysis brings clear advantages for the operation of any commercial means of transport or machines in the industrial environment. This solution also offers clear added value for other applications such as coolants, metal working fluids, or any other process fluids.
Technical Specifications
| Available Test Methods | ASTM D6595: Wear metals, contaminants, and additives in used lubricating oils and hydraulic fluids ASTM D6728: Contaminants in gas turbine and engine fuel |
| Correlation to | ASTM D5185 (ICP-AES) |
| Spectrometer Type | Rotating Disc Electrode Spectrometer (190 - 810nm) Thermally stabilized Paschen-Runge mounting with CMOS detectors |
| Applications | Determination of additives, wear metals, and contaminants in lubricating oils, hydraulic fluids, gas turbine & diesel engine fuel, heavy fuel oil (HFO), crude oil, glycol coolants, process water, mineral water, and grease |
| Analytical Range | Simultaneous measurement of up to 32 elements in 30 seconds with a sub-ppm detection limit (LOD) for most elements incl. automatic background correction |
| Calibration | Factory calibrated for 26 elements Optional calibration for up to 32 elements |
| Sample Volume | 2 mL; no solvents, reagents or gases are needed, no cleaning of cell window |
| Operating Conditions | 0 °C to 40 °C (32 °F to 104 °F) Up to 90% humidity, non-condensing |
| Fully Integrated Stand-Alone Design | Built-in electrode sharpener and ventilation system Industry-proven multilingual 10” color touchscreen Built-in PC with Ethernet, USB, and RS232 interfaces Optional connection of a monitor and data input by external keyboard, mouse, or barcode reader |
| Software | Windows® software for convenient data transfer, viewing spectra, and result analysis |
| Result Database | Over 100,000 detailed test reports and spectra storable in internal memory |
| Dimensions | W x D x H = 36 x 66 x 69 cm (14.2 x 25 x 27 in) |
| Weight | 85 kg (187 lb) |
| Power Requirements | 90 – 270 V, AC 50/60 Hz, 500 W |
| Recommended Consumables for 1000 Tests | EOL01 – A001 graphite discs (1000 pcs) EOL01 – A002 graphite electrodes (100 pcs) EOL01 – A003 2 ml sample cups (1000 pcs) |
