5-DIGIT DENSITY-PRECISION IN THE FIELD
30 พฤษภาคม 2566
ผู้ชม 214 ผู้ชม

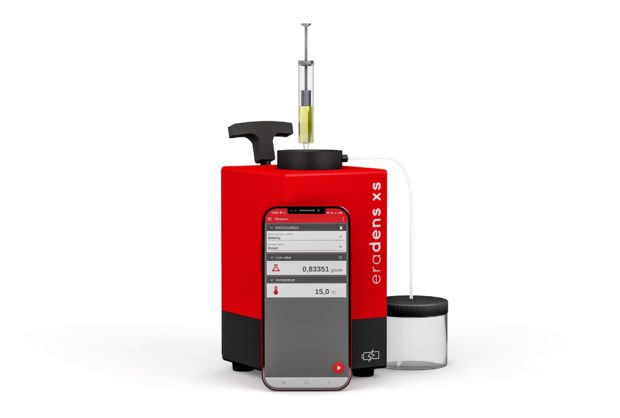

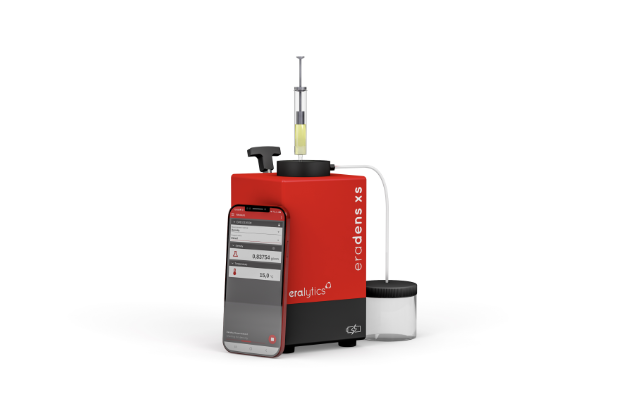

Easy and wireless operation wherever you are
ERADENS XS stands for easy operation and measurement routine wherever you are. The measurement is fast and easy by simply connecting the analyzer via Bluetooth® with your mobile device. With the small, portable, and lightweight instrument housing and the Bluetooth® technology for the easiest operation, ERADENS XS brings lab-grade precision to the field. A high-capacity battery extends the measurement possibilities even in the most remote areas.

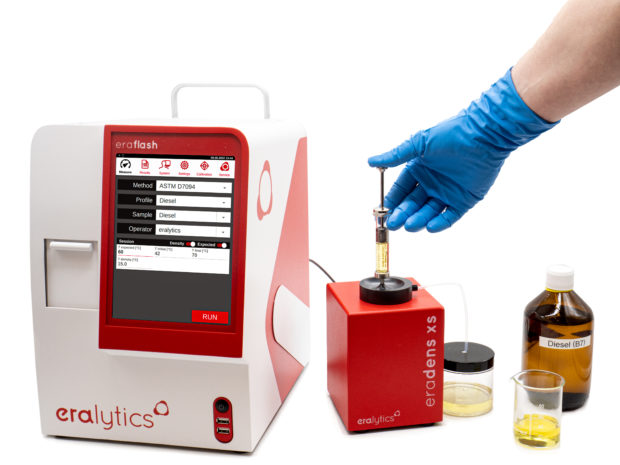

Compatible with all eralytics analyzers
With the temperature-controlled x-oscillating metal U-tube technology inside, ERADENS XS measures density with 5-digit precision. ERADENS XS is also available for the direct connection with all eralytics analyzers, except the ones already featuring an internal density meter module. The measured density result is available within seconds on your preferred device. Depending on your needs ERADENS XS provides the perfect solution across most industries, from the petroleum industry to the food, beverage, or the flavors and fragrance industry.
Maximum Operator Convenience & Easiest Operation
With its unique sample introduction from the top and the ergonomic handle, ERADENS XS is equally easy to operate for right-handed and left-handed persons. It is the analyzer with the smallest footprint on the market, still offering maximum ease of use and operator convenience. The compact dimensions and lightweight instrument design offer true portability on-site and require minimum bench space in the lab.

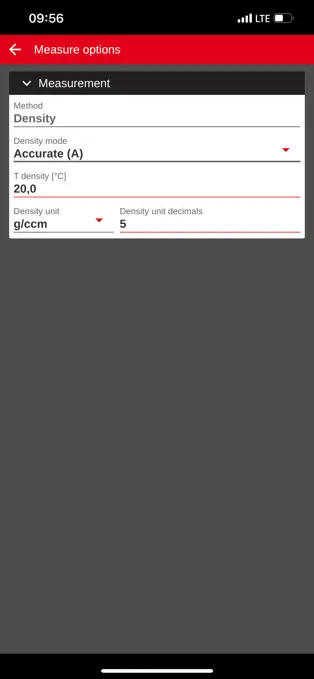

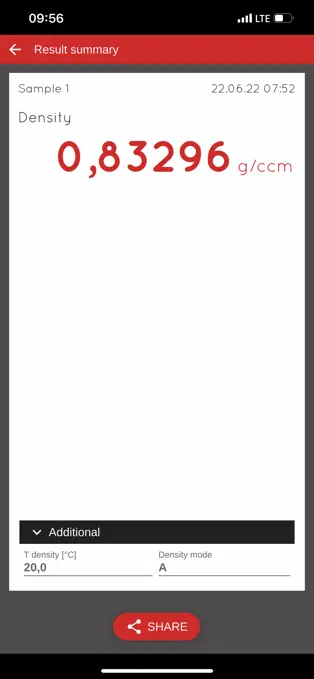

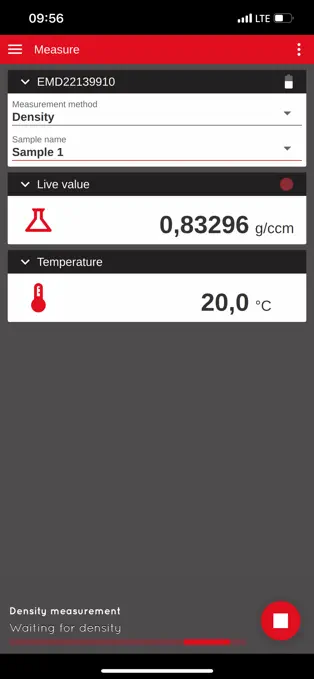

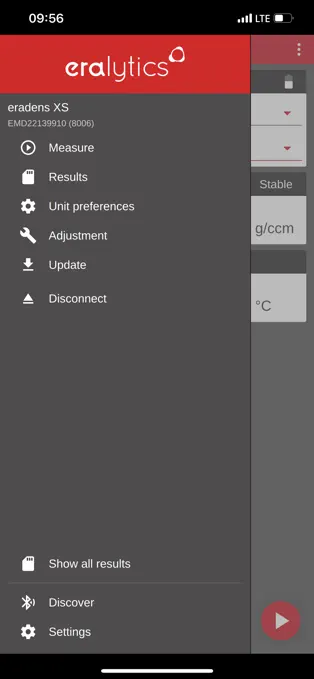

Mobile application 'eradens xs'
With the mobile application ‘eradens xs’ the measurement is done quickly and easily. Depending on your mobile device, please download the mobile app from the appropriate store.
Technical Specifications
Standard | ASTM D4052, D5002, ISO 12185 |
Density Range | 0 - 3 g/cm3 |
Temperature Range | 10 °C to 60 °C (50 °F to 140 °F) |
Density Accuracy | 0.00005 g/cm3 |
Density Repeatability (SD) | 0.00001 g/cm3 (according to ISO 5725) |
Density Resolution | 0.00001 g/cm3 |
Temperature Accuracy | 0.02 °C (0.04 °F) |
Measurement Time | 15 sec (after temperature equilibration) |
Minimum Sample Volume | 2 mL |
Oscillating Tube | Hastelloy |
Bubble Detection | yes |
Viscosity Correction | yes - full range correction (patented: AT523471, A1) |
Operation | Mobile instrument operation with the eralytics app ‘eradens xs’ (available in all App stores) |
Tables & Functions | API, sugar, alcohol, etc. |
Interfaces | Micro-USB: Communication to an eralytics analyzer Bluetooth®: Communication to mobile device (mobile phone, tablet |
Power Requirements | 110 – 240 VAC, 50 – 60 Hz, 120 W |
Battery | 8 h at 15 °C measuring temperature |
Operating Conditions | 5 °C - 45 °C up to 90 % rel. humidity (non-condensing) |
Dimensions & Weigh | W x D x H = 11 x 13 x 16 cm (4.3 x 5.1 x 6.2 in); 1.45 kg (3.2 lb) With battery: W x D x H = 11 x 13 x 21 cm (4.3 x 5.1 x 8.3 in); 2.1 kg (4.5 lb) |
