Universal Materials Tester 35kN
20 เมษายน 2566
ผู้ชม 391 ผู้ชม
DESCRIPTION

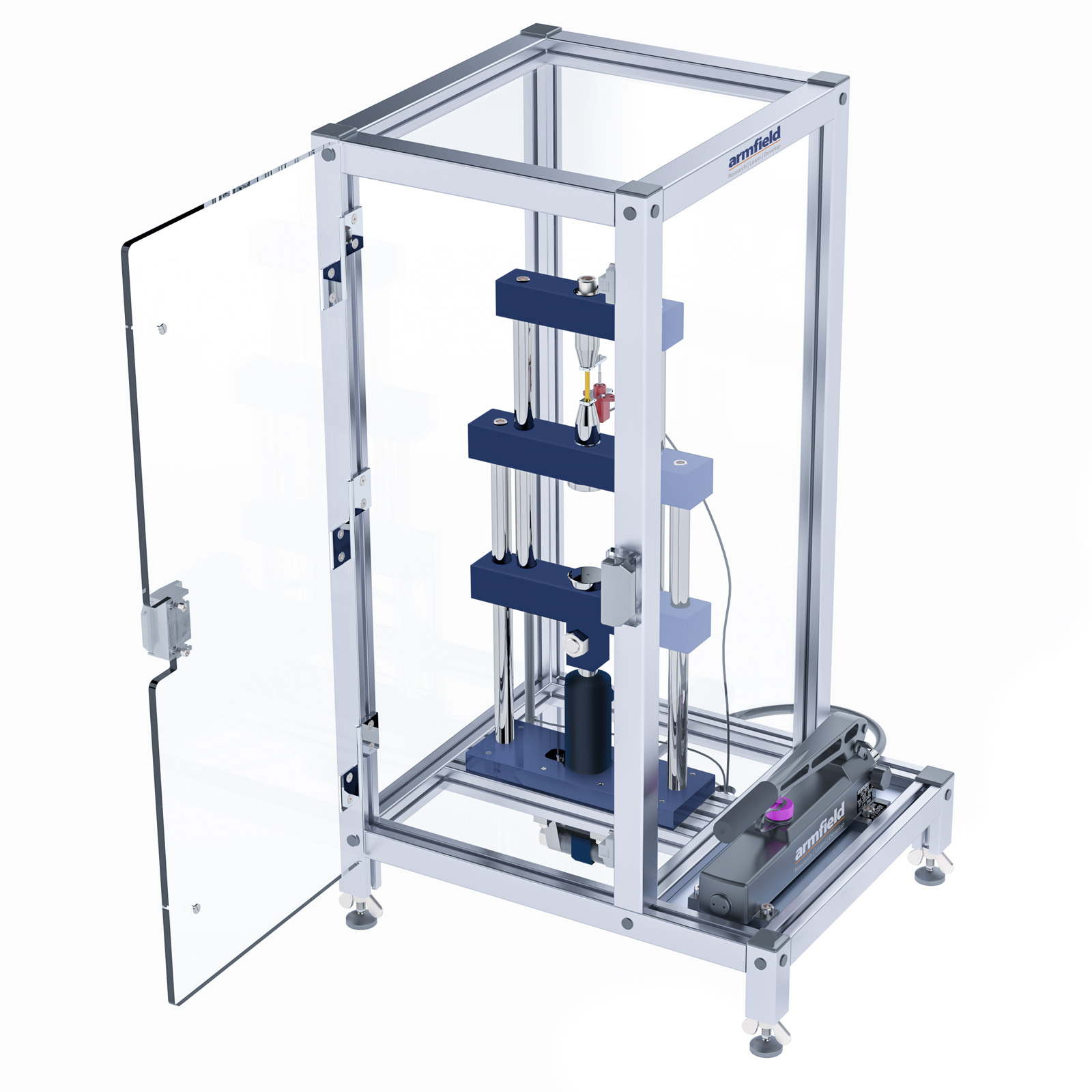

The SV805 is a modular, flexible, compact, safe, materials tester allowing students to conduct up to six (6) experiments on seven (7) different material types.
The results of these experiments allow students to gain a thorough understanding of materials properties and how the performance of these effects design.
The fully enclosed unit allows safe 360° viewing maximising visibility for large class sizes.
Data relating to elongation, extension and applied force is fed directly into the AIU Armfield interface. The software supplied with the AIU Armfield interface unit captures and stores the data to allow further data manipulation and processing.
EXPERIMENTAL CONTENT
- Tensile and compression testing
- Shear (unsymmetrical, symmetrical shear both supported and unsupported)
- Recording of stress-strain diagrams
- Modulus of elasticity testing
- Percentage elongation
- Deep draw testing
- Three-point bending
- Hardness testing
FEATURES & BENEFITS
- Apparatus fully enclosed behind safety guard
- Compressive and Tensile Testing as standard
- Supplied with Tensile & Compression specimens as standard
- Tensile Specimen Elongation measured on actual specimen for increased accuracy
- 100mm mechanical stroke
- 6 optional experiments available
- 7 replacement test specimens available
