Laser Particle Size Analyzer
09 มีนาคม 2566
ผู้ชม 396 ผู้ชม
Bettersizer ST
- Measurement: Particle size
- Particle size range: 0.1 to 1000µm
- Dispersion type: Wet
- Technology: Laser diffraction
- Analysis: Mie scattering theory and Fraunhofer diffraction theory
- Detector: 86 high-speed photodetectors (forward, lateral and backward arrangements)
- Measuring angle: 0.031-159°
EXCELLENT ACCURACY
Accuracy Verification of Standards

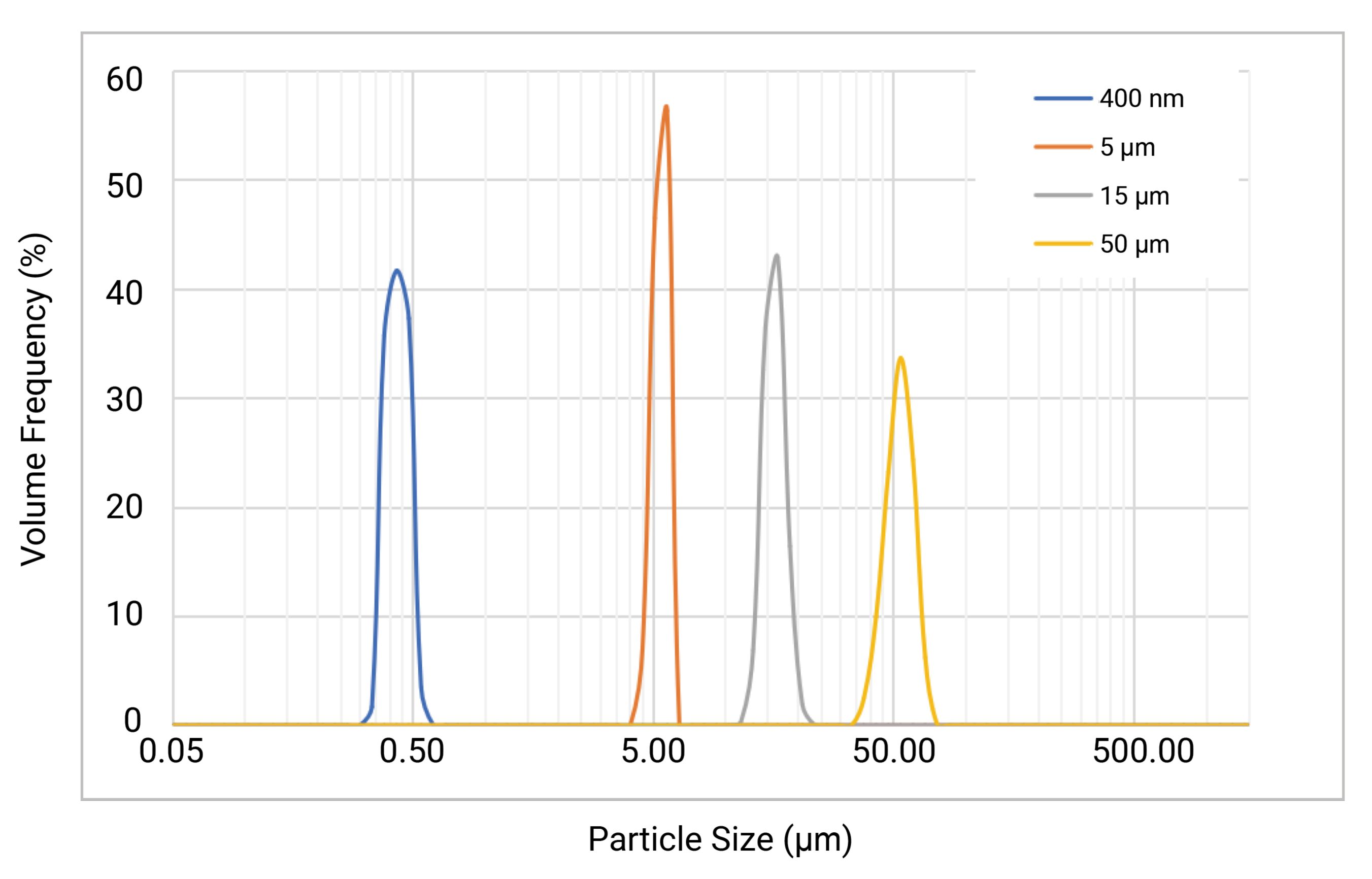

Duke standard samples were measured separately by the Bettersizer ST laser particle sizer, showing the distribution peak in the correct position and narrow distribution with high accuracy.

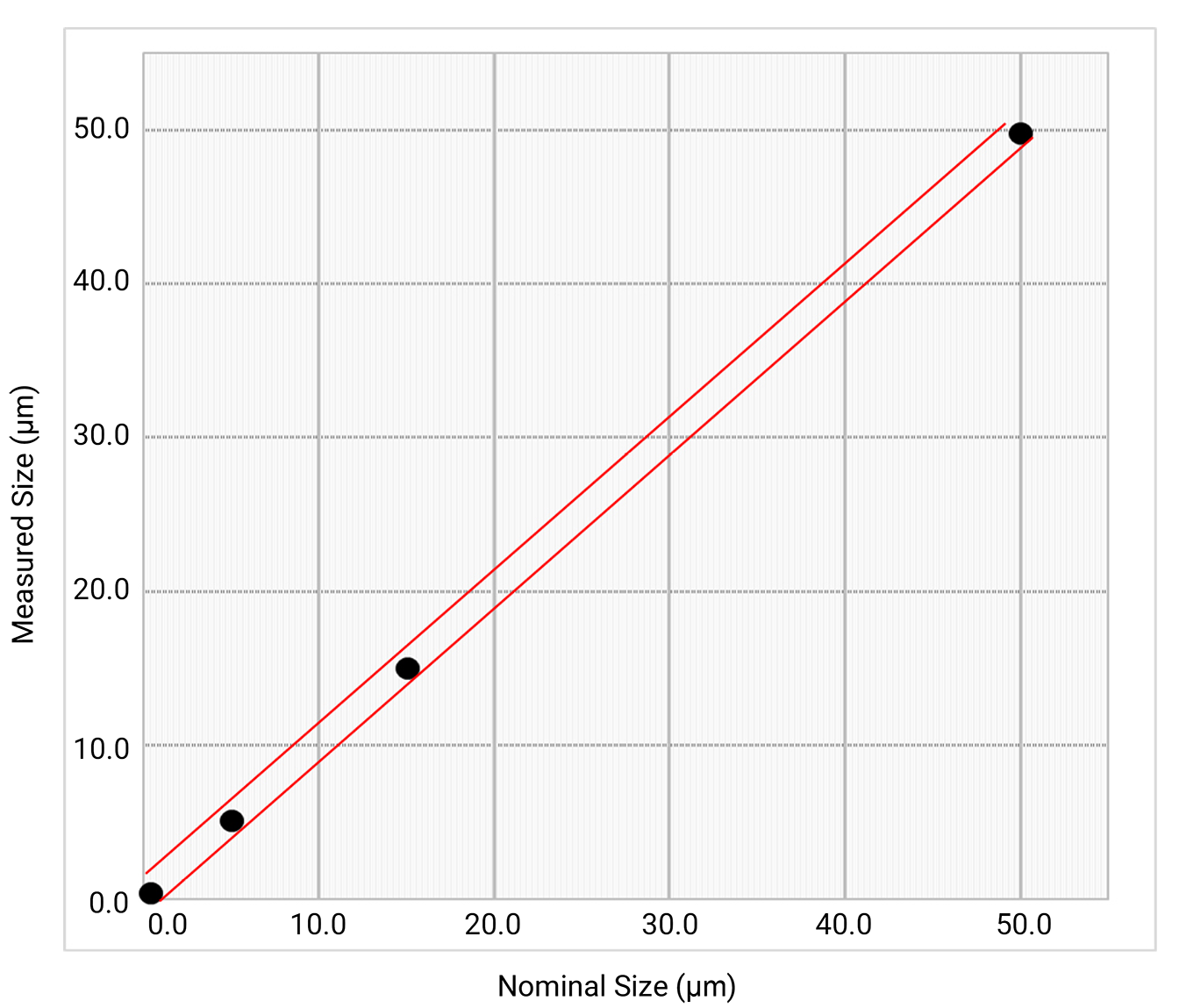

The red line is the nominal size range of standards ± 1.0%, and the black dots are the measured sizes. As shown in the figure, the measurement accuracy of Bettersizer ST laser particle sizer for standards is within 1%.
OUTSTANDING REPEATABILITY
Exceptional repeatability provided by Bettersizer ST laser particle sizer ensures the reliability of the results. Rapid measurements with consistent and reliable results can ease your workload on quality control.
Excellent Repeatability From: - Stability of signal transmission systems - Efficient dispersion system - Automatic alignment keeps the instrument always in optimum condition - Signal acquiring rate up to 3500 times/second

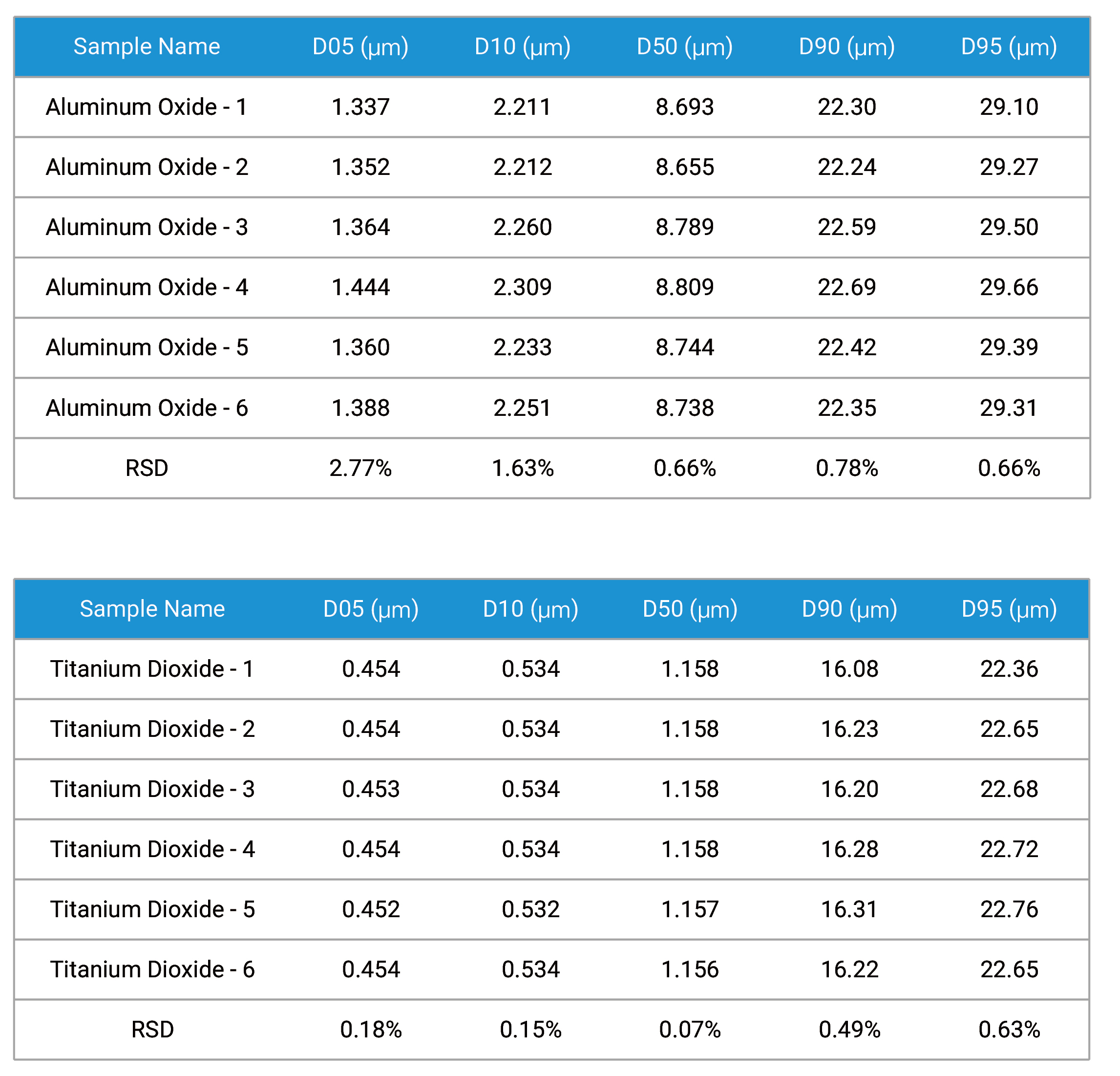

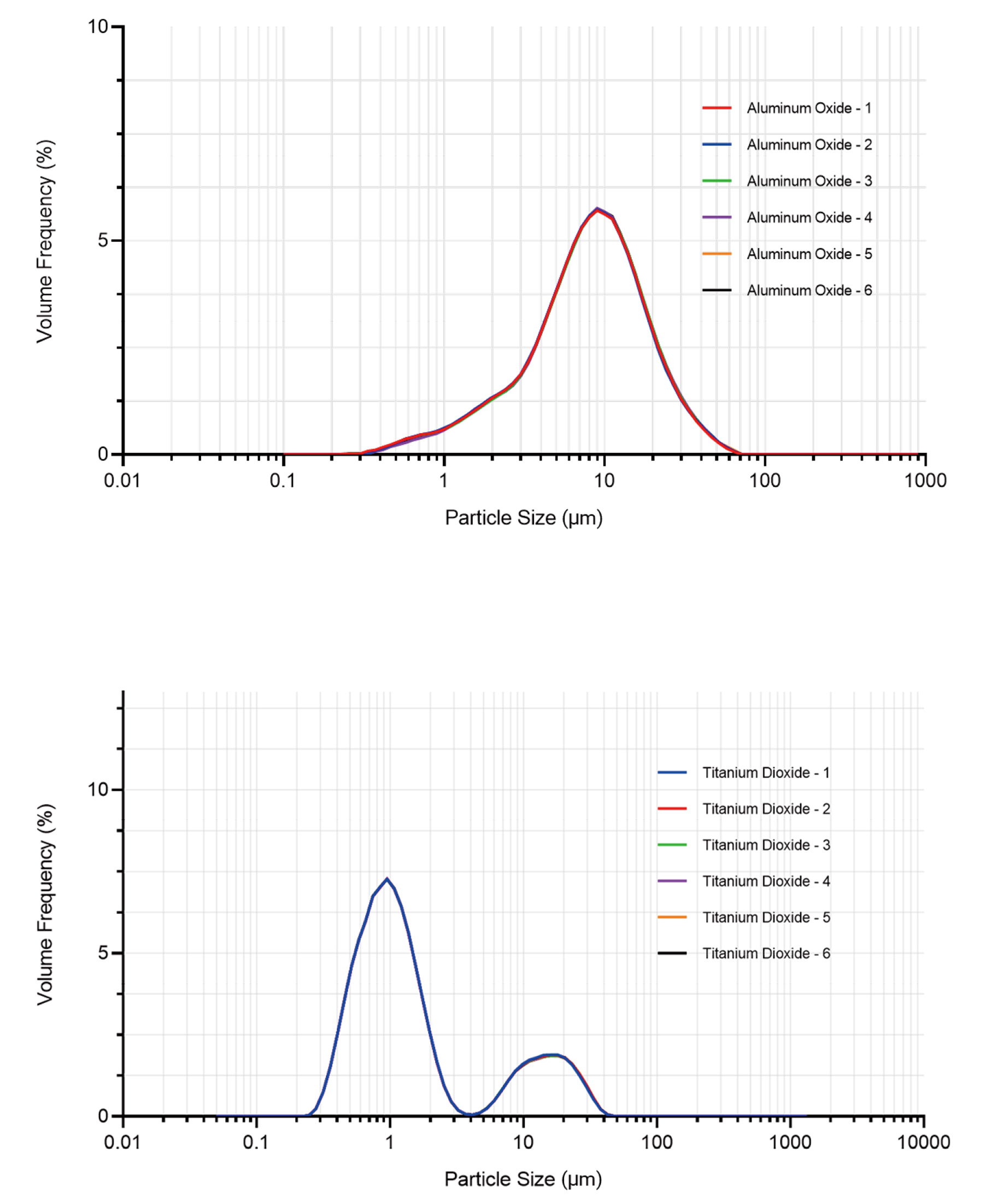

Repeatability Tests
The outstanding repeatability of Bettersizer ST, demonstrated by the following two consecutive tests.
Legendary Ease-of-Use
The Bettersize software provides various functions that greatly reduce your workload.
Ⅰ . Intuitive Software

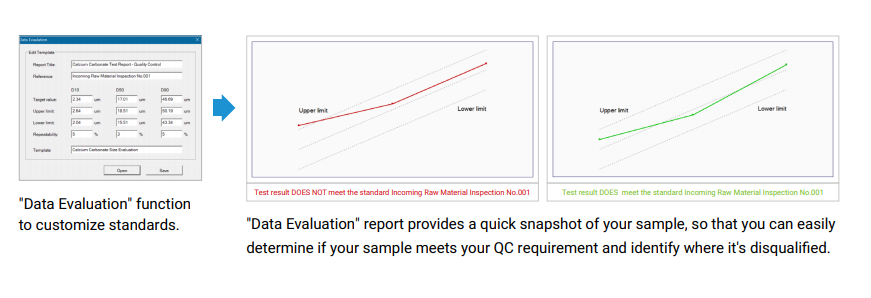

Ⅱ . Intelligent Data Evaluation for Quality Control

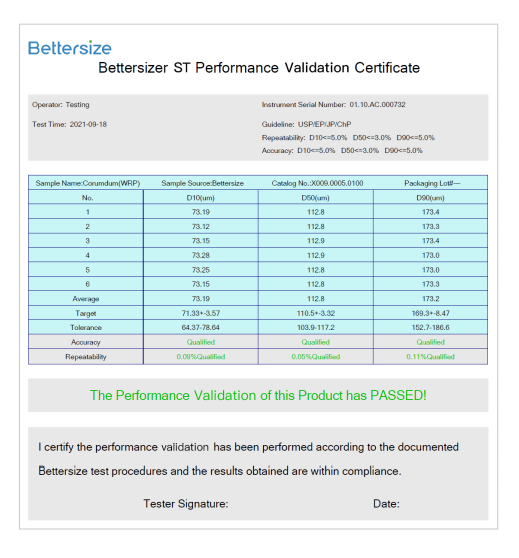

Ⅲ . Performance Validation

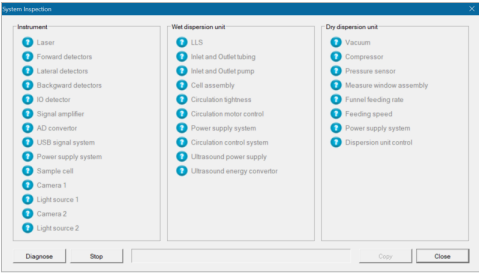

Ⅳ . System Inspection
Cost-Efficiency & Robustness
Outstanding Robustness
- Integrated casting of the bottom plate to protect the instrument
- Accurate measurements can be achieved even after a robustness test
- Long-life fiber semiconductor laser source
- Durable circulation tank with casted stainless steel
- Power-adjustable ultrasonic disperser with dry run protection
Compact Design
- Save valuable workspace for factories and laboratories with an internal wet dispersion system
- The DLOS ensures result accuracy and reliability, while avoiding folding optics that are susceptible to misalignment
Simple Maintenance
- Simple disassembly of sample cells allows a quick cleaning, which can be easily accessed without professional tools and excessive clean formulations
- Auto-cleaning function for the circulation tank eases the maintenance work greatly
- Auto-cleaning process can be easily customized in the software
Low Cost of Ownership
- Entry-level price for a laser particle size analyzer
- A measurement range that covers most applications can be achieved with DLOS without additional cost for a second laser source
