Kheops - Mottling measurement sensor
02 กุมภาพันธ์ 2566
ผู้ชม 159 ผู้ชม
Laboratory sensor designed for mottle and surface roughness measurement
> Designed for papermakers, baord makers, ink manufacturers, coating suppliers and printing operations
> Provides accurate and repeatable evaluations on :
- Quality of offset impressions, print mottling
- Precision of coating application
- Paper, board or other flat material roughness
> Provides excellent correlation with human eye evaluation and sensitivity
> Practical, repeatable, and responsive
> Highly sensitive to mottle or smoothness changes
Friendly software

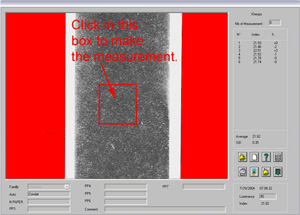

> Measurement window
- 6 test reference windows
- Configurable results table
> Configuration window
- final mottling index is the result of the combination fo 5 individual class preset size categories
> Result output inludes:
- average print mottle or surface smoothness
- deviation between measurements
- tolerance threshold
- class distribution
- class distribution standard deviation
Reliable and powerful
> Composed of CCD Camera and 2 light sources
> Stable sample illumination during capture and measurement process
> Individual analysis < 1 second
