MWT - measurement of fiber wall thickness
หมวดหมู่สินค้า: Techpap
รหัส : MorFi wall thickness
The MorFi wall thickness device has been developed by CTP. It is industrialized and distributed by Techpap. This instrument allows you to obtain in some minutes highly accurate measurements of fiber wall thickness. The MorFi WT thus completes the MorFi instruments range (MorFi Lab, MorFi on-line, MorFi carousel, MorFi Stat).
02 กุมภาพันธ์ 2566
ผู้ชม 130 ผู้ชม
The Fiber Wall Thickness sensor is an independent table unit. It is divided in two parts.
The hydraulic part with pulp sampling system, pump, circuits and valves, an original measuring cell and the camera with microscope resolution lens.
The hydraulic part with pulp sampling system, pump, circuits and valves, an original measuring cell and the camera with microscope resolution lens.
The electric part integrates mainly electric supplies, relays and a PC.

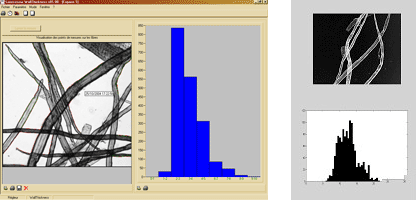

Measurement on pulp sample with High resolution (0,7μ) to give a complete information about cell wall thickness average & distribution
More.
