PI - On Line Dirt & Shives analysis module
หมวดหมู่สินค้า: Techpap
รหัส : PI Dirt & Shives
The dirt & shives module perform analises the whole pulp flowing through a measuring cell and counts all impurities typically found in pulps as dirt dots and shives.
01 กุมภาพันธ์ 2566
ผู้ชม 154 ผู้ชม
DIRT & SHIVES MODULE
This module is based on the well known Simpatic dirt counter developped by CTP.
15 years of experience in online dirt counting for deinking & recycling pulps as well for paper manufacturer.
With a resolution from 50μm to 100μ the system takes up to 30 images per seconds with digital IP camera It uses the same sampler as basic Pulp Inspector module
Results
The simpatic software perform on the fly analysis to detect all contrasted contaminants in the pulp flow such as:
- black contrasted dirt
- white contrasted elements
- shives discriminated by shape ratio detection

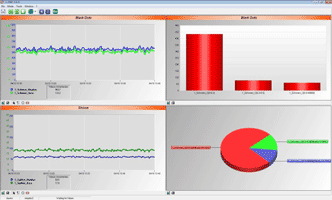

XTREND INTERFACE
Techpap has developped a graphic interface
- Multi users (through TCP/IP)
- Multi sensor
Each workspace configurable with:
- Trend curves
- Histogram
- Sectors...
More.
