Bioprocen 22 R
Universal
The bioprocessing requires a versatile centrifuge which cover different types of assays and therefore different configuration for the same centrifuge. The centrifuge Bioprocen 22 R is provided of high-speed rotors for microtubes from 1,5 to 5 ml, as well as 50 ml conical tubes. Its accessories for microplates offer the chance to spin in swing out rotors.
The refrigeration system has been designed for a temperature stability that allow to keep it even at high speed and along the run.
The different options for customization through the software become the centrifuge a tailor-made tool for your lab. Increase your lab output with the new Bioprocen 22 R.
Features
LCD screen:
- Shows RPM and RCF, time, temperature and acceleration/deceleration (PCBS).
- Speed programming in 10 RPM/ 10 xg steps.
- Timer countdown/up from “0” or at “set RPM/ RCF” for reproducible tests.
- Timer from 1 to 99 min. programmable in 5 sec. steps and hold position.
- PCBS: Progressive controlled acceleration and braking system up to 175 selectable ramps that prevents sample homogenization after separation.
- 16 programmable memories.
- Several acoustic and visual messages warning the user the device situation.
Easy to use
- Microprocessor controlled.
- Induction motor maintenance free (brushless).
- Rotors list on memory.
- Noise level: below 60 dB.
- Start, stop, open lid and short spin with adjustable speed buttons.
- Option of free/locked adjustment of RPM/ RCF along the run.
- Low heigh for easy access.
- Last values remain in memory.
- Automatic rotor recognition. Over-speed protection.
Cooling
- Remains the refrigeration after centrifugation process.
- Precooling program with rotor spinning and temperature selectable.
- Guarantee 4 °C at maximum RPM.
- Temperature range from -20°C (-4°F) to 40°C (104°F) in 1°C steps.
- Temperature sensor inside the chamber.
- Gas R 449A HFO (CFC free).
Standards and Directives
EU Directives: 2011/65/EU, 2012/19/EU, 2014/30/EU, 2014/35/EU, 98/79/EC.
Regulation n°: (EC) 1005/2009, (EU) 517/2014.
Standars: EN 61010-1, EN 61010-2-101, EN 61010-2-020, EN 61326-2-6, EN 61326-1.
Versions
Code | Dimensions (mm) (w x d x h) | Net weight (Kg) | Voltage (V) | Frequency (Hz) | Consumption (W) |
---|---|---|---|---|---|
CE 223 | 410x690x320 | 59 | 220-230 | 50 | 540 |
CE 224 | 410x690x320 | 59 | 110-120 | 60 | 700 |

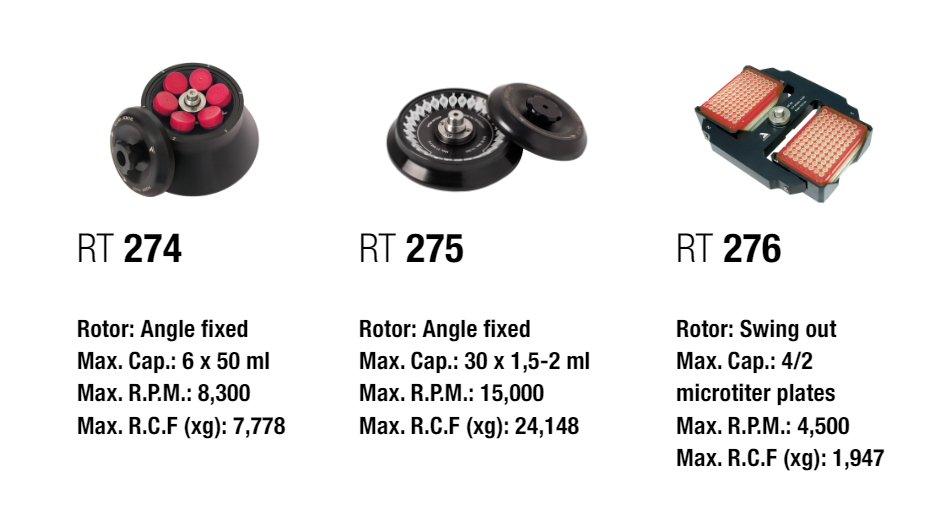

Compatible rotors
