เครื่องมือวัดขนาดตะเข้บกระป๋อง (Full Automatic Seam System)
28 กันยายน 2565
ผู้ชม 418 ผู้ชม
Summary
The Seam SightTM Full Automatic Seam Monitor is a compact measuring system for quick and accurate automatic seam measurements and storing of seam images.
The seam is positioned manually in front of the camera and is digitised by the computer.
In less than 1 second the Seam SightTM software offers a measurement. The seam length, body hook, end hook, actual overlap, percentage overlap; seam gap, seam thickness and body hook butting% are measured. At the end of the measurement an evaluated seam appears including dimension lines and measured values. This may be stored in computer or printed out on a laserprinter. The values can be stored in a Excel file and are displayed in on-screen if values are within specs.
Feature:
1. In less than 1 second the Seam SightTM software offers a measurement.
2. With the Golden LensTM get very clear Seam image
3. Data can be stored in a Excel file!
4. Measured values are displayed in on-screen and alarm if values are not within specs!
5. Seam image can be printed, stored!
6. Calibration function
7. LED Illumination
8. SPC function to collect the data of Mitutoyo micrometer.
Seam SightTM Full Automatic Seam Monitor consisting of:
* Seam Monitor
* Seam SightTM Software
* Calibration piece 2mm
Optional:
*Digital Seam Thickness Guage
*Digital Countersink Guage
*Interface to Seam SightTM

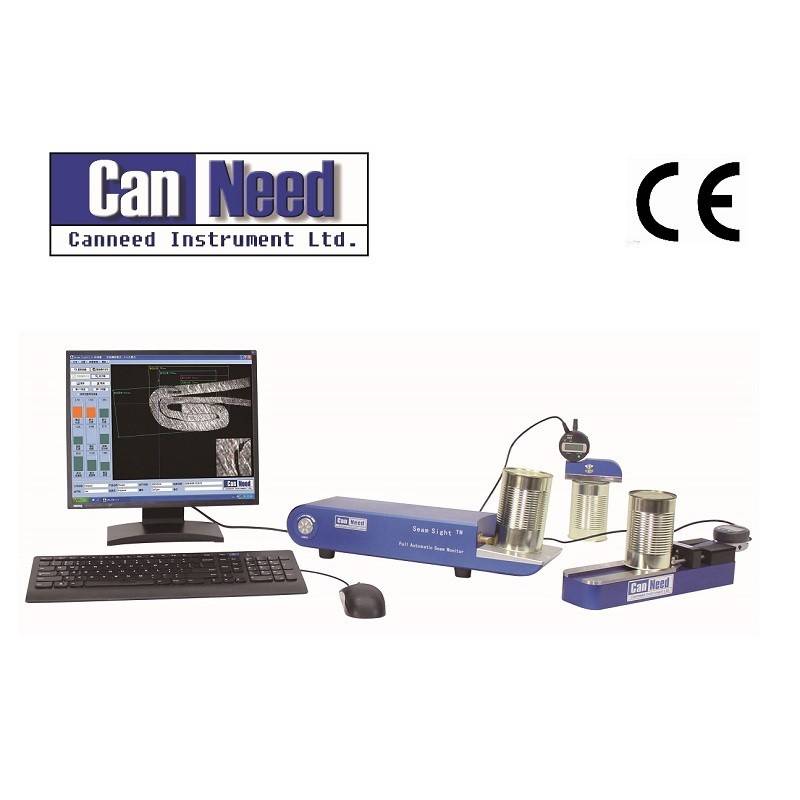

Seam SightTM Full Automatic Seam Measuring System
If the Seam SightTM Full Automatic Seam Monitor combine with the Digital Seam Thickness Guage, Digital Countersink Guage and Interface, it is a Seam SightTM Full Automatic Seam Measuring System.
Application
Beverage Industry
Specification
Technical Points | Description |
Power supply | 115 / 230V |
Accuracy | +/- 0.005 mm |
Languages | English / Chinese |
Cans dia. | 52-200 mm, custom made up to 300mm |
Dimensions | 400 X 200 X 150 mm(W X D X H) |
Weight | 5 kg |
